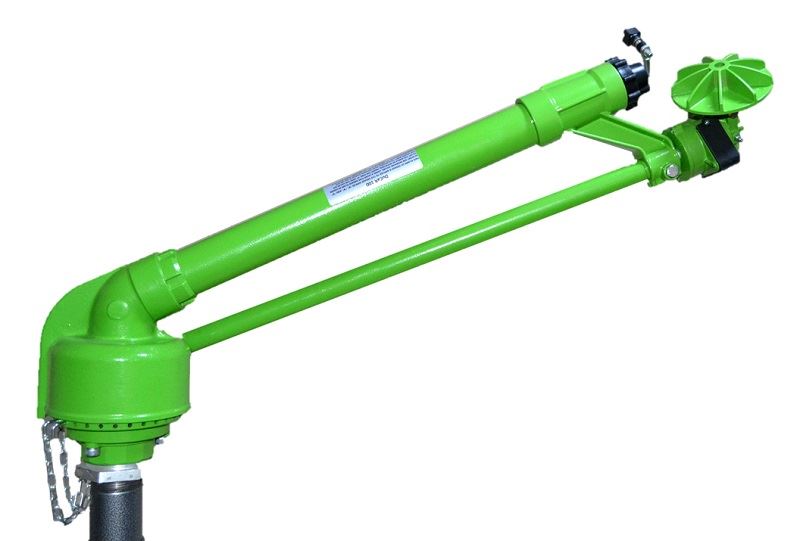

DuCaR Green 100

4 review(s) | Add your review

Low cost - high flow - effluent & clean water sprinkler

Water Input

2" Female BSP

Working Pressure

44 - 100 psi

Water Flow

246 - 1266 l/min

Shooting Radius

34 - 53 m

Free Nozzles

14, 16, 18, 20, 22, 24, 26, 28 mm

Body Angle

27°

Box Dimensions

22x22x86 cm

Weight

8 kg

Made in

Turkey

US $534.00

Manufacturer: DuCaR Sprinklers

SKU: GRN100

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+US $260.00]
DuCaR 2" 4-Legged Connection Stand with Quick Coupling [+US $239.00]
DuCaR 2" Inlet/Outlet Quick Coupling [+US $47.00]
DuCaR 2" Wheeled Cart with Hose Reel [+US $308.00]

Qty:

+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 100:

High capacity, Medium and high pressure (3 - 7 atm) and gear drive sprinkler head rotating
Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
Appropriate for all Agricultural and Industrial applications.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M
Nozzle Diameter		Pressure		Jet Length		Capacity
14	0.55	3	44	29	95	246.67	14.8	65
14	0.55	4	56	32	105	286.67	17.2	76
14	0.55	5	70	34	112	315	18.9	83
16	0.62	3	44	30	98	308.33	18.5	81
16	0.62	4	56	34	112	358.33	21.5	95
16	0.62	5	70	35	115	391.67	23.5	103
18	0.7	3	44	32	105	390	23.4	103
18	0.7	4	56	35	115	445	26.7	118
18	0.7	5	70	37	121	498.33	29.9	132
20 (2 Hole)	0.78	3	45	34	112	450	27	119
20 (2 Hole)	0.78	4	56	37	121	525	31.5	139
20 (2 Hole)	0.78	5	70	40	131	600	36	159
22 (2 Hole)	0.86	4	56	37	121	633	38	167
22 (2 Hole)	0.86	5	70	40	131	700	42	185
22 (2 Hole)	0.86	6	85	43	141	733	44	194
24 (2 Hole)	0.94	4	56	38	125	666	40	176
24 (2 Hole)	0.94	5	70	41	134	750	45	198
24 (2 Hole)	0.94	6	85	43	141	800	48	211
26	1	4	56	43	141	833.3	50	220
26	1	5	70	45	148	950	57	251
26	1	6	85	48	157	1050	63	277
28	1.1	5	70	47	154	1100	66	291
28	1.1	6	85	50	164	1200	72	317
28	1.1	7	100	53	174	1266.7	76	335

Some unique benefits of DuCaR Green 100:

High capacity, Medium and high pressure (3 - 7 atm) and gear drive sprinkler head rotating
Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
Appropriate for all Agricultural and Industrial applications.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M
Nozzle Diameter		Pressure		Jet Length		Capacity
14	0.55	3	44	29	95	246.67	14.8	65
14	0.55	4	56	32	105	286.67	17.2	76
14	0.55	5	70	34	112	315	18.9	83
16	0.62	3	44	30	98	308.33	18.5	81
16	0.62	4	56	34	112	358.33	21.5	95
16	0.62	5	70	35	115	391.67	23.5	103
18	0.7	3	44	32	105	390	23.4	103
18	0.7	4	56	35	115	445	26.7	118
18	0.7	5	70	37	121	498.33	29.9	132
20 (2 Hole)	0.78	3	45	34	112	450	27	119
20 (2 Hole)	0.78	4	56	37	121	525	31.5	139
20 (2 Hole)	0.78	5	70	40	131	600	36	159
22 (2 Hole)	0.86	4	56	37	121	633	38	167
22 (2 Hole)	0.86	5	70	40	131	700	42	185
22 (2 Hole)	0.86	6	85	43	141	733	44	194
24 (2 Hole)	0.94	4	56	38	125	666	40	176
24 (2 Hole)	0.94	5	70	41	134	750	45	198
24 (2 Hole)	0.94	6	85	43	141	800	48	211
26	1	4	56	43	141	833.3	50	220
26	1	5	70	45	148	950	57	251
26	1	6	85	48	157	1050	63	277
28	1.1	5	70	47	154	1100	66	291
28	1.1	6	85	50	164	1200	72	317
28	1.1	7	100	53	174	1266.7	76	335

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full & Part
Minimum Required Pressure	44 psi (3 bar)
Maximum Working Pressure	100 psi (7bar)
Minimum Required Water Flow	250 l/min
Maximum Water Flow	1000 l/min
Minimum Shooting Range	31 - 35 m
Maximum Shooting Range	51 - 60 m
Box Dimension	22x22x86 cm
Nozzles	14, 16, 18, 20, 22, 24, 26, 28 mm
Weight	8 kg
