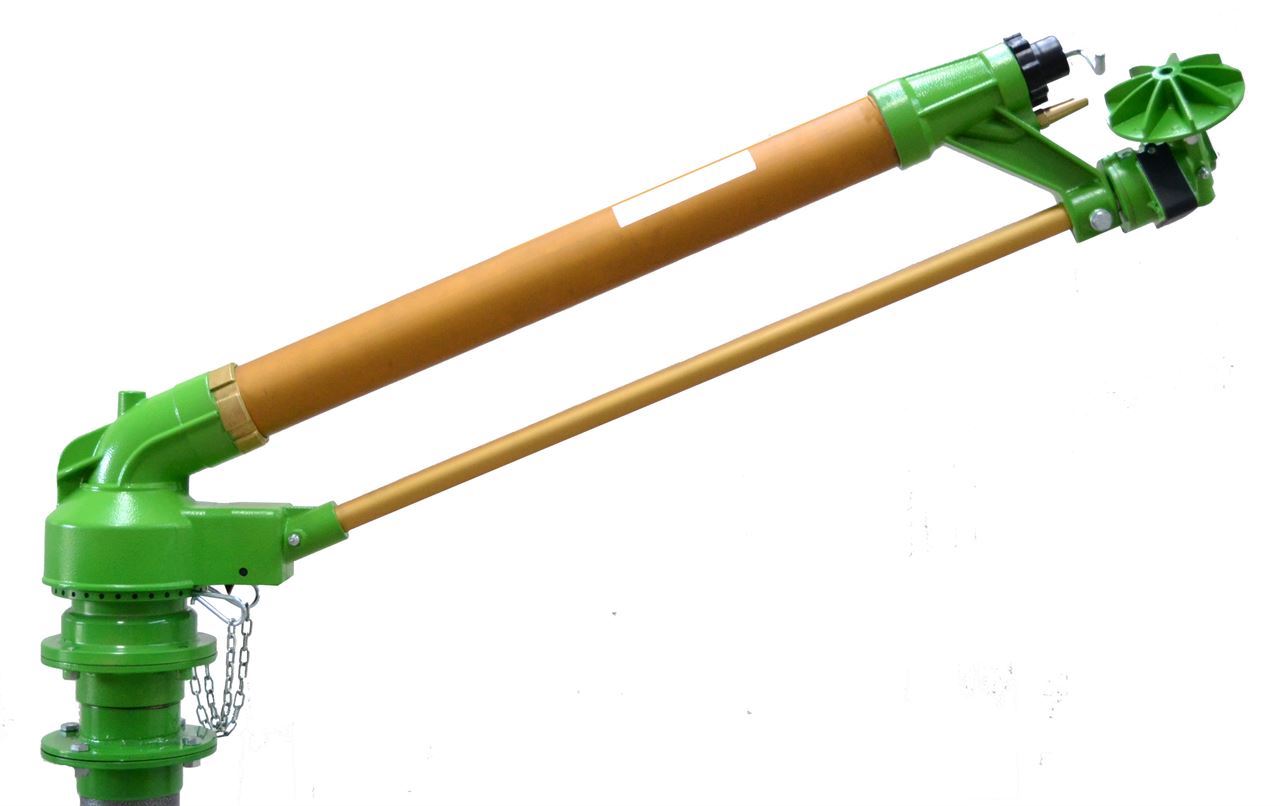

DuCaR Green 150

SKU: GRN150
Delivery date: 3-5 business days
Manufacturer: DuCaR Sprinklers

Increase your travelling irrigator's efficiency! Perfect water distribution - Longer throw!


Water Input
:
2.5" Female BSP

Working Pressure
:
44 - 100 psi

Water Flow
:
463 - 1814 l/min

Shooting Radius
:
34 - 66 m

Free Nozzles
:
20, 22, 24, 26, 28, 30, 32 mm

Body Angle
:
24°

Box Dimensions
:
24 x 24 x 106 cm

Weight
:
10 kg

Extra Fittings
:
FREE Flange + Speed Control Nozzle
US $786.00

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 150:

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 150:

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2.5"
Circle Full & Part
Minimum Required Pressure 44 psi (3 bar)
Maximum Working Pressure 100 psi (7bar)
Minimum Required Water Flow 460 l/min
Maximum Water Flow 1850 l/min
Minimum Shooting Range 31 - 35 m
Maximum Shooting Range 61 - 85 m
Box Dimension 24 x 24 x 106 cm
Nozzles 20, 22, 24, 26, 28, 30, 32 mm
Weight 10 kg
