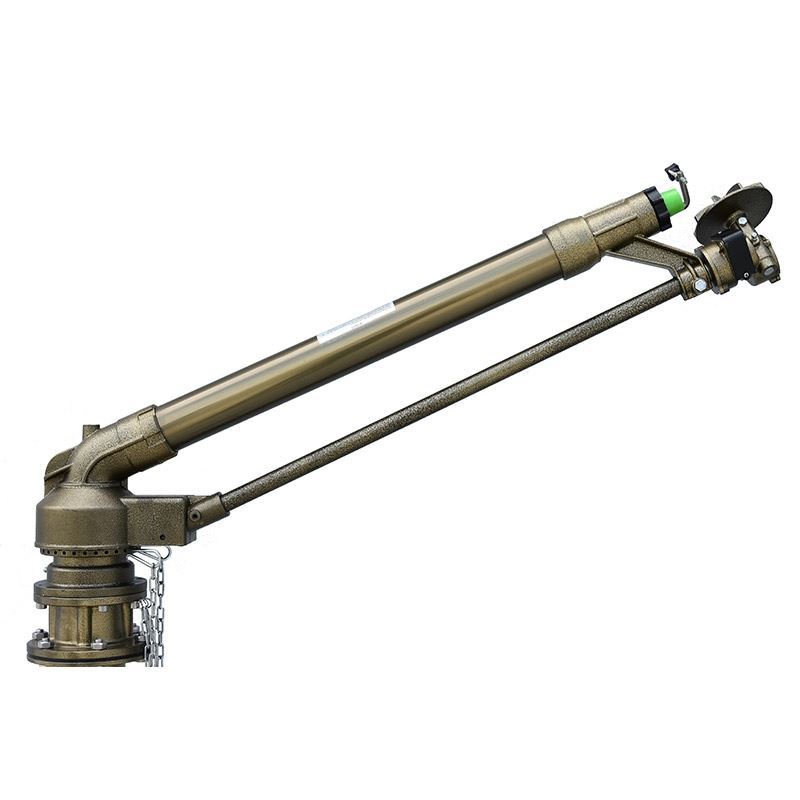

DuCaR JET 65T

SKU: JET65T
Delivery date: 3-5 business days
Manufacturer: DuCaR Sprinklers

HIGH VOLUME effluent and sandy water sprinkler


Water Input
:
2.5" Flanged

Working Pressure
:
44 - 100 psi

Water Flow
:
375 - 1358 l/min

Shooting Radius
:
32 - 53 m

Free Nozzles
:
18, 20, 22, 24, 26, 28 mm

Body Angle
:
24°

Box Dimensions
:
24x24x106 cm

Weight
:
10 kg
US $741.00

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar JET 65T is a gear driven, part and full circle sprinkler featuring high volume and pressure operations (3 to 7 Bar), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR Jet 65T SPECIFICALLY DESIGNED FOR HIGH VOLUME EFFLUENT & WASTE WATER IRRIGATION:

  • Comes with 10 different nozzles, 5 for clean water, 5 for NON CLOGGING DIRTY WATER irrigation
  • Perfect for DAIRY EFFLUENT irrigation, horse ranches, pasture, arenas, large turf areas, dust control, gardens or other crops and more.
  • Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water. Its rubber nozzles which automatically expand in case of clogging to dilute and distribute manures in the farms.
  • Equipped with water passage barrel with special design anti-turbulence blades.
  • Runs full or part circles at the same speed as it has spare gear mechanism for rotating.
  • Features smooth part or full circle operation at the same speed
  • Adjustable water breaker from mist to large droplets and
  • Very reliable with low maintenance requirements
  • Highest quality among 2.5" input big gun sprinklers
  • Throws up to a 110m diameter circle
  • It has new type special paint; new type powder paint makes it much more durable against environmental effects.
  • Very easy to set up and run
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers


The bestselling model of the series; changeable nozzles and dynamic water jet breaker system enable a perfect irrigation with evenly distributed water.





Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
18 0.70 3 44 32 105 375 22.5 99 3215 0.79 7.0
18 0.70 4 56 35 115 438 26.3 116 3847 0.5 6.8
18 0.70 5 70 37 121 470 28.2 124 4299 1.06 6.6
18 0.70 6 85 40 131 522 31.3 138 5024 1.24 6.2
20 0.78 3 44 35 115 445 26.7 118 3847 0.95 6.9
20 0.78 4 56 37 121 537 32.2 142 4299 1.06 7.5
20 0.78 5 70 42 138 592 35.5 156 5539 1.37 6.4
22 0.86 3 44 35 115 557 33.4 147 3847 0.95 8.7
22 0.86 4 56 37 121 642 38.5 170 4299 1.06 9.0
22 0.86 5 70 40 131 717 43 189 5024 1.24 8.6
22 0.86 6 85 42 138 787 47.2 208 5539 1.37 8.5
24 0.94 4 56 43 141 772 46.3 204 5806 1.43 8.0
24 0.94 5 70 45 148 802 48.1 212 6359 1.57 7.6
24 0.94 6 85 47 154 885 53.1 234 6936 1.71 7.7
26 1 4 56 44 144 867 52 229 6079 1.50 8.6
26 1 5 70 46 151 967 58 255 6644 1.64 8.7
26 1 6 85 49 161 1067 64 282 7539 1.86 8.5
28 1.1 5 70 50 164 1117 67 295 7850 1.94 8.5
28 1.1 6 85 50 164 1233 74 326 7850 1.94 9.4
28 1.1 7 100 53 174 1358 82 359 8820 2.18 9.2

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar JET 65T is a gear driven, part and full circle sprinkler featuring high volume and pressure operations (3 to 7 Bar), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR Jet 65T SPECIFICALLY DESIGNED FOR HIGH VOLUME EFFLUENT & WASTE WATER IRRIGATION:

  • Comes with 10 different nozzles, 5 for clean water, 5 for NON CLOGGING DIRTY WATER irrigation
  • Perfect for DAIRY EFFLUENT irrigation, horse ranches, pasture, arenas, large turf areas, dust control, gardens or other crops and more.
  • Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water. Its rubber nozzles which automatically expand in case of clogging to dilute and distribute manures in the farms.
  • Equipped with water passage barrel with special design anti-turbulence blades.
  • Runs full or part circles at the same speed as it has spare gear mechanism for rotating.
  • Features smooth part or full circle operation at the same speed
  • Adjustable water breaker from mist to large droplets and
  • Very reliable with low maintenance requirements
  • Highest quality among 2.5" input big gun sprinklers
  • Throws up to a 110m diameter circle
  • It has new type special paint; new type powder paint makes it much more durable against environmental effects.
  • Very easy to set up and run
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers


The bestselling model of the series; changeable nozzles and dynamic water jet breaker system enable a perfect irrigation with evenly distributed water.





Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
18 0.70 3 44 32 105 375 22.5 99 3215 0.79 7.0
18 0.70 4 56 35 115 438 26.3 116 3847 0.5 6.8
18 0.70 5 70 37 121 470 28.2 124 4299 1.06 6.6
18 0.70 6 85 40 131 522 31.3 138 5024 1.24 6.2
20 0.78 3 44 35 115 445 26.7 118 3847 0.95 6.9
20 0.78 4 56 37 121 537 32.2 142 4299 1.06 7.5
20 0.78 5 70 42 138 592 35.5 156 5539 1.37 6.4
22 0.86 3 44 35 115 557 33.4 147 3847 0.95 8.7
22 0.86 4 56 37 121 642 38.5 170 4299 1.06 9.0
22 0.86 5 70 40 131 717 43 189 5024 1.24 8.6
22 0.86 6 85 42 138 787 47.2 208 5539 1.37 8.5
24 0.94 4 56 43 141 772 46.3 204 5806 1.43 8.0
24 0.94 5 70 45 148 802 48.1 212 6359 1.57 7.6
24 0.94 6 85 47 154 885 53.1 234 6936 1.71 7.7
26 1 4 56 44 144 867 52 229 6079 1.50 8.6
26 1 5 70 46 151 967 58 255 6644 1.64 8.7
26 1 6 85 49 161 1067 64 282 7539 1.86 8.5
28 1.1 5 70 50 164 1117 67 295 7850 1.94 8.5
28 1.1 6 85 50 164 1233 74 326 7850 1.94 9.4
28 1.1 7 100 53 174 1358 82 359 8820 2.18 9.2
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2.5"
Circle Full & Part
Minimum Required Pressure 44 psi (3 bar)
Maximum Working Pressure 100 psi (7bar)
Minimum Required Water Flow 460 l/min
Maximum Water Flow 1300 l/min
Minimum Shooting Range 31 - 35 m
Maximum Shooting Range 51 - 60 m
Box Dimension 20x20x105 cm
Nozzles 20, 22, 24, 26, 28 mm
Weight 9 kg
