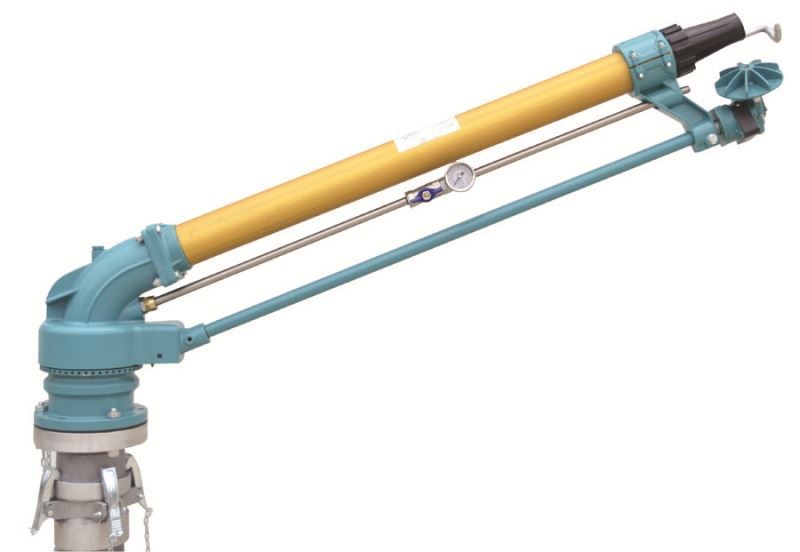

DuCaR JET 200

SKU: JET200
Delivery date: 3-5 business days
Manufacturer: DuCaR Sprinklers

Biggest rain gun sprinkler in the market on sale now!


Water Input
:
3" Female BSP

Working Pressure
:
44 - 114 psi

Water Flow
:
720 - 3350 l/min

Shooting Radius
:
41 - 84 m

Free Nozzles
:
25, 28, 30, 32, 34, 36 mm

Body Angle
:
23°

Box Dimensions
:
20x33x130 cm

Weight
:
17 kg

Connection
:
Flange + FREE Quick Coupling
US $1,049.00
US $1,293.00

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar JET 200 is the biggest gear driven, part and full circle sprinkler in the market. It features medium to high pressure operations (3 to 9 Bars), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR Jet 200:

  • Features smooth part or full circle operation at the same speed
  • Includes SPEED CONTROL of rotation, so you can find the perfect rotation speed for your land
  • Adjustable water breaker from mist to large droplets and
  • Very reliable with low maintenance requirements
  • Highest quality among 3" input big gun sprinklers
  • Comes with 6 different nozzles.
  • Runs on from 44 to 114 psi
  • Dimensions 1190mm (L) x 600mm (H)
  • Throws up to a 170m diameter circle!!!
  • Great for Pasture, Horse arenas, large turf areas, Crops (including delicate ones), Dust control, Mining, and so much more.
  • Suitable for portable and fixed pipe systems
  • Very easy to set up and run
  • Comes with FREE FLANGE and QUICK COUPLING Connection systems
  • It can be removed from the stand or pipe to another one in seconds with no tools. So it enables you to cover a huge area with just ONE sprinkler!
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers
  • Provides perfect irrigation with the performance, technology, reliablity and the feature of uniform coverage.


It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc. as well as coffee, lemon and banana trees for humidification and washing purpose.

Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high speed rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism. Quick-connect system comes as standard together with the product.





Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
25 1 3 44 41 134 720 43,2 190 5278 1,30 8,2
25 1 4 56 44 144 805 48,3 213 6079 1,50 7,9
25 1 5 70 48 157 917 55 242 7235 1,79 7,6
28 1,10 4 56 50 164 1050 63 277 7850 1,94 8,0
28 1,10 5 70 52 171 1200 72 317 8491 2,10 8,5
28 1,10 6 85 56 184 1300 78 343 9847 2,43 7,9
30 1,18 4 56 51 167 1220 73,2 322 8167 2,02 9,0
30 1,18 5 70 56 184 1383 83 365 9847 2,43 8,4
30 1,18 6 85 57 187 1488 89,3 393 10202 2,52 8,8
32 1,25 4 56 52 171 1383 83 365 8491 2,10 9,8
32 1,25 5 70 56 184 1550 93 409 9847 2,43 9,4
32 1,25 6 85 60 197 1733 104 458 11304 2,79 9,2
32 1,25 7 100 64 210 1850 111 489 12861 3,18 8,6
34 1,33 5 70 58 190 1750 105 462 10563 2,61 9,9
34 1,33 6 85 62 203 1950 117 515 12070 2,98 9,7
34 1,33 7 100 66 216 2033 122 537 13678 3,38 8,9
36 1,42 6 85 65 213 2117 127 559 13267 3,28 9,6
36 1,42 7 100 68 223 2253 135 595 14519 3,59 9,3
36 1,41 8 114 71 233 2435 146 643 15829 3,91 9,2
38 1,5 6 85 67 220 2317 139 612 14095 3,48 9,9
38 1,5 7 100 70 230 2483 149 656 15386 3,80 9,7
38 1,5 8 114 72 236 2683 161 709 16278 4,02 9,9
40 1,57 6 85 68 223 2600 156 687 14519 3,59 10,7
40 1,57 7 100 73 239 2700 162 713 16733 4,13 9,7
40 1,57 8 114 76 249 2950 177 779 18137 4,48 9,8
42 1,65 6 85 70 230 2800 168 740 15386 3,80 10,9
42 1,65 7 100 75 246 3000 180 793 17663 4,36 10,2
42 1,65 8 114 79 259 3150 189 832 19597 4,84 9,6
42 1,65 9 114 84 276 3350 201 885 22156 5,47 9,1

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar JET 200 is the biggest gear driven, part and full circle sprinkler in the market. It features medium to high pressure operations (3 to 9 Bars), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR Jet 200:

  • Features smooth part or full circle operation at the same speed
  • Includes SPEED CONTROL of rotation, so you can find the perfect rotation speed for your land
  • Adjustable water breaker from mist to large droplets and
  • Very reliable with low maintenance requirements
  • Highest quality among 3" input big gun sprinklers
  • Comes with 6 different nozzles.
  • Runs on from 44 to 114 psi
  • Dimensions 1190mm (L) x 600mm (H)
  • Throws up to a 170m diameter circle!!!
  • Great for Pasture, Horse arenas, large turf areas, Crops (including delicate ones), Dust control, Mining, and so much more.
  • Suitable for portable and fixed pipe systems
  • Very easy to set up and run
  • Comes with FREE FLANGE and QUICK COUPLING Connection systems
  • It can be removed from the stand or pipe to another one in seconds with no tools. So it enables you to cover a huge area with just ONE sprinkler!
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers
  • Provides perfect irrigation with the performance, technology, reliablity and the feature of uniform coverage.


It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc. as well as coffee, lemon and banana trees for humidification and washing purpose.

Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high speed rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism. Quick-connect system comes as standard together with the product.





Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
25 1 3 44 41 134 720 43,2 190 5278 1,30 8,2
25 1 4 56 44 144 805 48,3 213 6079 1,50 7,9
25 1 5 70 48 157 917 55 242 7235 1,79 7,6
28 1,10 4 56 50 164 1050 63 277 7850 1,94 8,0
28 1,10 5 70 52 171 1200 72 317 8491 2,10 8,5
28 1,10 6 85 56 184 1300 78 343 9847 2,43 7,9
30 1,18 4 56 51 167 1220 73,2 322 8167 2,02 9,0
30 1,18 5 70 56 184 1383 83 365 9847 2,43 8,4
30 1,18 6 85 57 187 1488 89,3 393 10202 2,52 8,8
32 1,25 4 56 52 171 1383 83 365 8491 2,10 9,8
32 1,25 5 70 56 184 1550 93 409 9847 2,43 9,4
32 1,25 6 85 60 197 1733 104 458 11304 2,79 9,2
32 1,25 7 100 64 210 1850 111 489 12861 3,18 8,6
34 1,33 5 70 58 190 1750 105 462 10563 2,61 9,9
34 1,33 6 85 62 203 1950 117 515 12070 2,98 9,7
34 1,33 7 100 66 216 2033 122 537 13678 3,38 8,9
36 1,42 6 85 65 213 2117 127 559 13267 3,28 9,6
36 1,42 7 100 68 223 2253 135 595 14519 3,59 9,3
36 1,41 8 114 71 233 2435 146 643 15829 3,91 9,2
38 1,5 6 85 67 220 2317 139 612 14095 3,48 9,9
38 1,5 7 100 70 230 2483 149 656 15386 3,80 9,7
38 1,5 8 114 72 236 2683 161 709 16278 4,02 9,9
40 1,57 6 85 68 223 2600 156 687 14519 3,59 10,7
40 1,57 7 100 73 239 2700 162 713 16733 4,13 9,7
40 1,57 8 114 76 249 2950 177 779 18137 4,48 9,8
42 1,65 6 85 70 230 2800 168 740 15386 3,80 10,9
42 1,65 7 100 75 246 3000 180 793 17663 4,36 10,2
42 1,65 8 114 79 259 3150 189 832 19597 4,84 9,6
42 1,65 9 114 84 276 3350 201 885 22156 5,47 9,1
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 3"
Circle Full & Part
Minimum Required Pressure 44 psi (3 bar)
Maximum Working Pressure 115 psi (8 bar)
Minimum Required Water Flow 720 l/min
Maximum Water Flow 3350 l/min
Minimum Shooting Range 36 - 40 m
Maximum Shooting Range 61 - 85 m
Box Dimension 25x33x130 cm
Nozzles 25, 28, 30, 32, 34, 36, 38, 40, 42 mm
Weight 16 kg
Flanged Connected Yes
