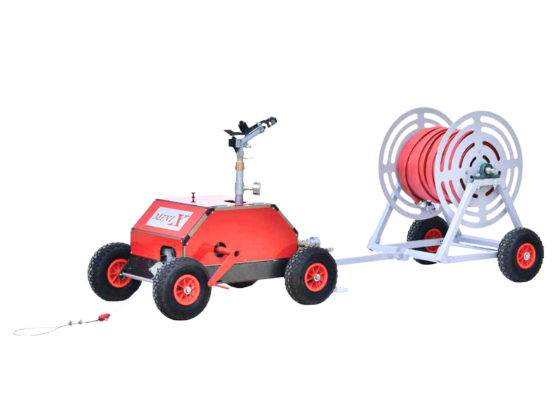

IrriCruiser MINI 120 Travelling Irrigator

2 review(s) | Add your review

STOP wasting time to fix your pop-up sprinklers. IrriCruiser MINI is very easy to use, efficient, turbine drive, LOW-COST travelling irrigator, and is suitable for lawn, sports fields, golf, race courses and small- to medium size hobby gardens.

Run Length

120 m

Lay Flat Hose

1 1/4" (32 mm) 60 m Premium Drag Hose

Working Pressure

30 - 51 psi

Water Flow

57 - 117 l/min

Effective Spray Width

30 - 41 m

Travel Speed

19 to 110 m/h

Sprinkler

DuCaR Atom 22

Mechanism

Turbine drive & Automatic Stop at End of Run

Weight

55 kg

Construction

Heavy duty welded chassis hot dip galvanized & powder coated

Made in

Turkey

Call for pricing

Manufacturer: DuCaR Sprinklers

SKU: IrriCruiser-Mini-120

Availability:

In stock

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

DuCaR IrriCruiser MINI 120 - New Generation Turbine Drive Travelling Irrigator

Applications

Agriculture: Small hobby farms

Turf Irrigation: Golf, race/horse courses, playing/sports fields and gardens

Dust Control: Mining and construction sites

FEATURES

Hot dip galvanised and powder-coated chassis & Aluminium frame
Patented travel shut-off mechanism: It closes the water inlet valve when it comes to the end of the run and your pump shuts itself down too. (NOTE: The pump must have a pressure sensor.)
High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
Single speed gear box
Compact design, easy to use and store
Hose reel
Portable: The DuCaR IrriCruiser MINI is ideal for irrigating small acreages. They can be easily towed from field to field.
Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement: The DuCaR IrriCruiser MINI can easily be operated by one man and the labour consists mostly of lying down and rewinding the hose.
Cable length 120 m
Lay Flat Hose : 1 1/4" (32 mm) Premium Drag Hose
Required water flow : 50 - 120 l/min
Designed in Australia, made in Turkey

New Generation DuCaR IrriCruiser Aluminium Turbine System

The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
DuCaR IrriCruiser MINI develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
No Filters required for the turbine drive.
No exhaust water from the turbine drive, all water is distributed through the sprinkler.

DuCaR IrriCruiser MINI 120 Typical Method of Operation

DuCaR IrriCruiser MINI typical method of operation

Download Catalogue

Download DuCaR IrriCruiser Soft Hose Travelling Irrigators Full Catalogue

DuCaR IrriCruiser MINI 120 Introduction

DuCaR IrriCruiser MINI 120 at a sports field

Minix-Setup-Layout-Reduced

Download Technical Specifications of IrriCruiser MINI 120

Technical Specifications of DuCaR IrriCruiser MINI 120

IrriCruiser-Mini-travelling-irrigator-rainfall-and-velocity-relations-table

Nozzle Diameter		Pressure		Jet Length		Capacity			Efficiency
Nozzle Diameter		Pressure		Jet Length		Capacity			Efficiency
Main Nozzle (mm)	Secondary Nozzle (mm)	kg/cm² ^(bar)	lbs/inch (psi)	m	feet	l/min	m³/h	G.P.M	Irrigated Area (m²)	Lineer Speed (m/h)	Rainfall (mm)	Required Total Pressure (bar)
8	X	2	29	16.5	54	56.4	3.4	14.9	3675	19	2.8	3.0
8	X	3	44	18.0	59	67.8	4.1	18	4040	40	3.1	4.2
8	X	4	56	19.0	62	79.8	4.8	21.1	4285	55	3.4	6.0
8	4	2	29	16.5	54	71.4	4.3	18.9	3675	39	3.6	3.2
8	4	3	44	18.0	59	86.4	5.2	22.8	4040	60	4.0	5.0
8	4	4	56	19.0	62	99.6	6	26.4	4285	80	4.3	7.0
10	X	4	56	17.0	55	88.2	5.3	23.3	3796	82	4.3	4.0
10	X	5	70	19.5	63	106.2	6.4	28.1	4409	110	4.5	6.0
10	X	2	29	20.5	67	116.4	7	30.8	4659	103	4.6	7.0

DuCaR IrriCruiser MINI 120 - New Generation Turbine Drive Travelling Irrigator

Applications

Agriculture: Small hobby farms

Turf Irrigation: Golf, race/horse courses, playing/sports fields and gardens

Dust Control: Mining and construction sites

FEATURES

Hot dip galvanised and powder-coated chassis & Aluminium frame
Patented travel shut-off mechanism: It closes the water inlet valve when it comes to the end of the run and your pump shuts itself down too. (NOTE: The pump must have a pressure sensor.)
High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
Single speed gear box
Compact design, easy to use and store
Hose reel
Portable: The DuCaR IrriCruiser MINI is ideal for irrigating small acreages. They can be easily towed from field to field.
Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement: The DuCaR IrriCruiser MINI can easily be operated by one man and the labour consists mostly of lying down and rewinding the hose.
Cable length 120 m
Lay Flat Hose : 1 1/4" (32 mm) Premium Drag Hose
Required water flow : 50 - 120 l/min
Designed in Australia, made in Turkey

New Generation DuCaR IrriCruiser Aluminium Turbine System

The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
DuCaR IrriCruiser MINI develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
No Filters required for the turbine drive.
No exhaust water from the turbine drive, all water is distributed through the sprinkler.

DuCaR IrriCruiser MINI 120 Typical Method of Operation

DuCaR IrriCruiser MINI typical method of operation

Download Catalogue

Download DuCaR IrriCruiser Soft Hose Travelling Irrigators Full Catalogue

DuCaR IrriCruiser MINI 120 Introduction

DuCaR IrriCruiser MINI 120 at a sports field

Minix-Setup-Layout-Reduced

Download Technical Specifications of IrriCruiser MINI 120

Technical Specifications of DuCaR IrriCruiser MINI 120

IrriCruiser-Mini-travelling-irrigator-rainfall-and-velocity-relations-table

Nozzle Diameter		Pressure		Jet Length		Capacity			Efficiency
Nozzle Diameter		Pressure		Jet Length		Capacity			Efficiency
Main Nozzle (mm)	Secondary Nozzle (mm)	kg/cm² ^(bar)	lbs/inch (psi)	m	feet	l/min	m³/h	G.P.M	Irrigated Area (m²)	Lineer Speed (m/h)	Rainfall (mm)	Required Total Pressure (bar)
8	X	2	29	16.5	54	56.4	3.4	14.9	3675	19	2.8	3.0
8	X	3	44	18.0	59	67.8	4.1	18	4040	40	3.1	4.2
8	X	4	56	19.0	62	79.8	4.8	21.1	4285	55	3.4	6.0
8	4	2	29	16.5	54	71.4	4.3	18.9	3675	39	3.6	3.2
8	4	3	44	18.0	59	86.4	5.2	22.8	4040	60	4.0	5.0
8	4	4	56	19.0	62	99.6	6	26.4	4285	80	4.3	7.0
10	X	4	56	17.0	55	88.2	5.3	23.3	3796	82	4.3	4.0
10	X	5	70	19.5	63	106.2	6.4	28.1	4409	110	4.5	6.0
10	X	2	29	20.5	67	116.4	7	30.8	4659	103	4.6	7.0
