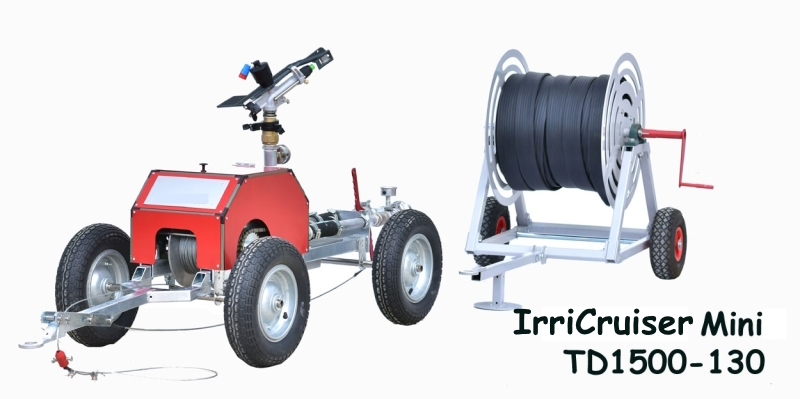

IrriCruiser MINI 130 Travelling Irrigator

DuCaR IrriCruiser MINI 130 - New Generation Turbine Drive Travelling Irrigator

Applications

Agriculture: Small crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

• Hot dip galvanised chassis & Aluminium frame
• Patented travel shut-off mechanism.
• High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools. Delivers high torque at low RPMs even towards end of run (0.5 to 1.1 bar pressure loss for operation of the turbine).
• Single speed gear box
• Speed Control Valve: Precise speed control between 16 m/h and 27 m/h
• Compact design, easy to use and store
• Hose reel
• Portable: The DuCaR IrriCruiser MINI 130 is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
• Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
• Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
• Easy and safe operation
• Very low labour requirement: The DuCaR IrriCruiser MINI 130 can easily be operated by one man and the labour consists mostly of driving a tractor.
• Cable length 130 m
• Lay Flat Hose : 1.5" Premium Drag Hose
• Required water flow : 107 - 213 l/min
• Designed in Australia, made in Turkey

New Generation DuCaR IrriCuriser Aluminium Turbine System

• The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
• It is a very energy efficient irrigator since it pulls only the hose equivalent to half length of its full run length.
• DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
• Single speed heavy duty type; gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
• The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
• No Filters required for the turbine drive.
• No exhaust water from the turbine drive, all water is distributed through the sprinkler.

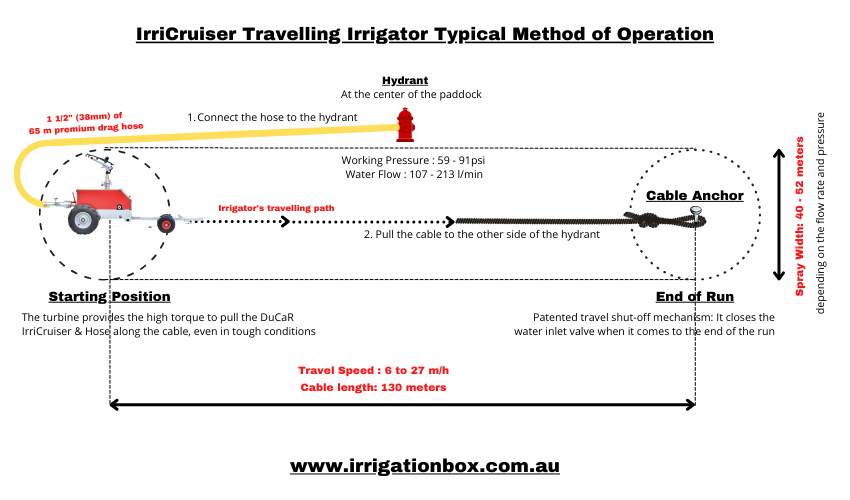

DuCaR IrriCruiser MINI 130 Typical Method of Operation
