Complete Irrigation Kit with Villiers 12-HP Diesel High Pressure & Volume Pump

SKU: Complete-Kit-2500
Delivery date: 3-5 business days

Easy to use, highly efficient & COST EFFECTIVE complete irrigation kit with sprinkler cart, lay flat hose & diesel engine pump.

Max Capacity
:
500 l/min
Max Head
:
90 m at 3600 RPM
Engine Power
:
Villiers 12 HP Diesel
Fuel Consumption
:
210 g/hp.h
Suction/Discharge
:
2"x2"
Sprinkler Head
:
DuCaR Atom 28 or B30
Shooting Radius
:
19 - 30 m
Call for pricing
*

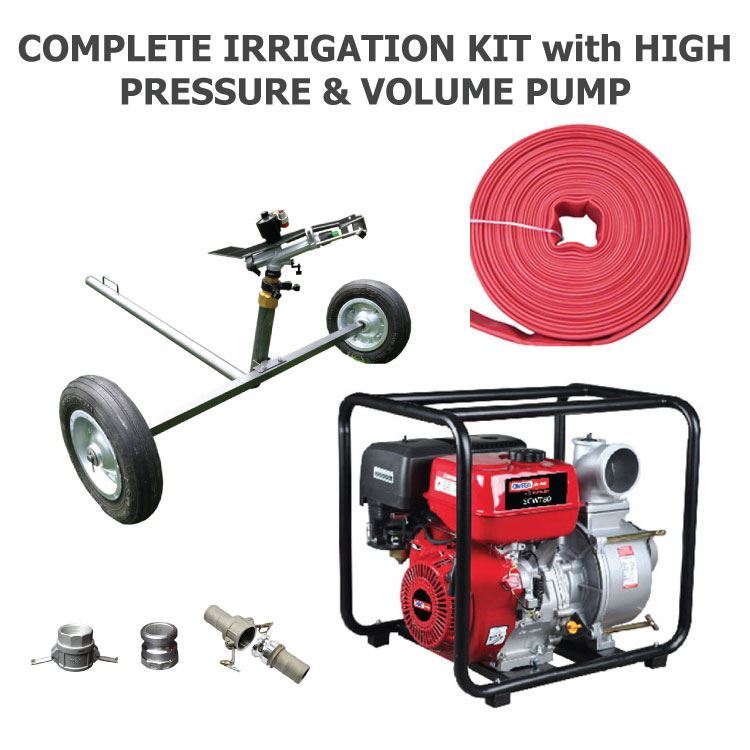

Complete Irrigation Kit 2500 : Sprinkler Cart + Lay Flat Hose + High Pressure Pump

The kit includes followings:

  1. Medium throw DuCaR Atom 28 or B-30 impact sprinkler with wheeled cart
  2. 100 m - 1.5" high pressure (RED) lay flat hose
  3. Aluminium cam locks (1 x type A, 1 x type D, 1 x type C, 1 x type E)
  4. Villiers high pressure & volume pump with 12 HP electric start diesel engine

Villiers F460FDE/80RC Pump: 2" Suction/Discharge - 600 l/min Max Capacity - 60 m Max Head

Long range fuel tank, 4 hour running. Keyless ignition with electric start recoil backup.

Great for use in the construction, agricultural , hire and fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

The fire pump range includes both single and twin impeller models as well as a special single impeller model which produces both high pressure and high volume.

This is driven by a 12hp electric start Villiers diesel engine. Fire pumps are sold in roll frames as standard.

Also used in homes and factories in remote areas to provide water supply to fire sprinker systems.

Features

  • pressure die cast aluminium
  • pump body
  • cast iron volute diffuser
  • cast iron discharge caps
  • simply-charged, self-priming design
  • the 80RC pumps have a solid one piece aluminium impeller
  • 12.5 L long range fuel tank
  • all Villiers engines have a 2 year warranty

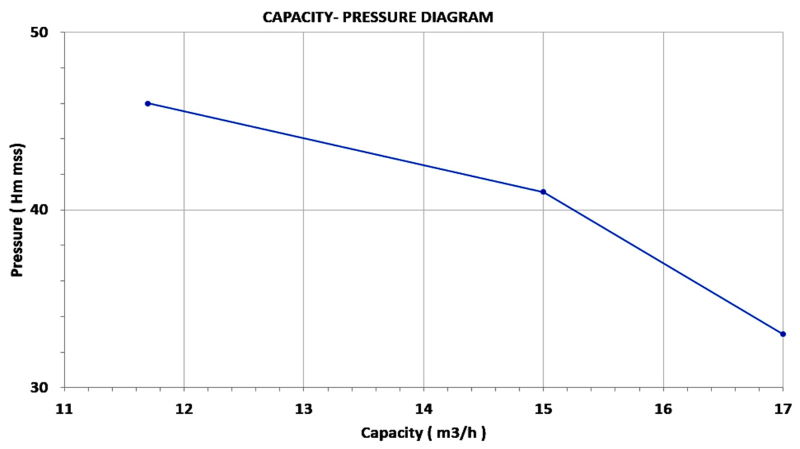

Villiers F460FDE Performance Curve
Villiers F460FDE / 80RC

Villiers Diesel High Pressure High Volume Water Pumps Curve
Villiers-F460FDE-HPTI-TWIN-IMPELLER-Pump




Villiers Diesel High Pressure High Volume Pumps Technical Specifications

Pump Model Engine
Power (HP)

Inlet X Outlet

Max
Capacity

Max
Head

Max
Speed

Max
Output

Type

Fuel
Consumption

Speed (RPM) m³/h 7.2 10.8 14.4 18 21.6 25.2 28.8
l/min 120 180 240 300 360 420 480
l/s 2 3 4 5 6 7 8

F460FDE/80RC

Villiers 12hp Diesel with electric/recoil start 2" x 2" 600 l/min 60 m (90 psi) 3600 RPM 12 HP Single cylinder, 4 stroke air cooled, direct
injection diesel

210 g/hp.

3100 Head (m) 57 55 51 45 40 25  15
3600 Head (m) 67 65 61 55 50 35  25


Some unique benefits of DuCaR ATOM 28 Metal sprinkler:

  • Comes with 3 different METAL nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7

Complete Irrigation Kit 2500 : Sprinkler Cart + Lay Flat Hose + High Pressure Pump

The kit includes followings:

  1. Medium throw DuCaR Atom 28 or B-30 impact sprinkler with wheeled cart
  2. 100 m - 1.5" high pressure (RED) lay flat hose
  3. Aluminium cam locks (1 x type A, 1 x type D, 1 x type C, 1 x type E)
  4. Villiers high pressure & volume pump with 12 HP electric start diesel engine

Villiers F460FDE/80RC Pump: 2" Suction/Discharge - 600 l/min Max Capacity - 60 m Max Head

Long range fuel tank, 4 hour running. Keyless ignition with electric start recoil backup.

Great for use in the construction, agricultural , hire and fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

The fire pump range includes both single and twin impeller models as well as a special single impeller model which produces both high pressure and high volume.

This is driven by a 12hp electric start Villiers diesel engine. Fire pumps are sold in roll frames as standard.

Also used in homes and factories in remote areas to provide water supply to fire sprinker systems.

Features

  • pressure die cast aluminium
  • pump body
  • cast iron volute diffuser
  • cast iron discharge caps
  • simply-charged, self-priming design
  • the 80RC pumps have a solid one piece aluminium impeller
  • 12.5 L long range fuel tank
  • all Villiers engines have a 2 year warranty
Villiers F460FDE Performance Curve
Villiers F460FDE / 80RC

Villiers Diesel High Pressure High Volume Water Pumps Curve
Villiers-F460FDE-HPTI-TWIN-IMPELLER-Pump




Villiers Diesel High Pressure High Volume Pumps Technical Specifications

Pump Model Engine
Power (HP)

Inlet X Outlet

Max
Capacity

Max
Head

Max
Speed

Max
Output

Type

Fuel
Consumption

Speed (RPM) m³/h 7.2 10.8 14.4 18 21.6 25.2 28.8
l/min 120 180 240 300 360 420 480
l/s 2 3 4 5 6 7 8

F460FDE/80RC

Villiers 12hp Diesel with electric/recoil start 2" x 2" 600 l/min 60 m (90 psi) 3600 RPM 12 HP Single cylinder, 4 stroke air cooled, direct
injection diesel

210 g/hp.

3100 Head (m) 57 55 51 45 40 25  15
3600 Head (m) 67 65 61 55 50 35  25


Some unique benefits of DuCaR ATOM 28 Metal sprinkler:

  • Comes with 3 different METAL nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
