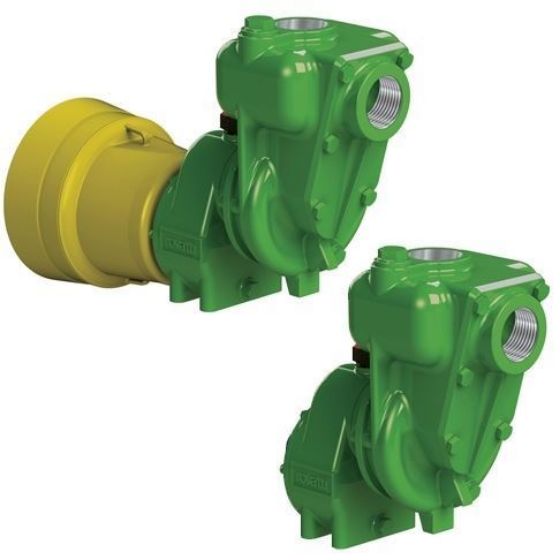

Rovatti Mini Centrifugal T0F-50 Series PTO Pumps

SKU: Rovatti-T0A
Delivery date: 2-3 business days
Manufacturer: Rovatti Pompe

Midi, compact, portable & user friendly centrifugal and self-priming tractor driven PTO pumps by Rovatti.

Capacity
:
100 - 550 l/min
Head
:
29 - 53.5 m at 540 RPM
Minimum Tractor Power
:
5 - 15 HP
PTO RPM X Gear Ratio
:
450, 500, 540 X 1:7.77
Inlet/Outlet
:
2" x 2"

Made in Italy
US $1,100.00

Rovatti single-stage mini centrifugal or self-priming high pressure pumps

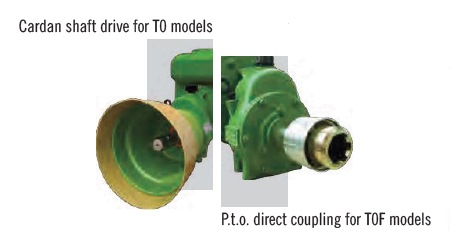

Overgear driven by cardan shaft of PTO (TOF-50A) or direct connection (TOF-50). Axial inlet and scroll outlet.

Rovatti T0F-50 series compact and portable user friendly tractor driven centrifugal pumps have been designed by ROVATTI to satisfy a wide range of applications, including water transfer, irrigation, wash-down and bowser/tank filling, etc....The selection of plastic suction and delivery fittings reduces the overall weight to allow for a rapid transfer between tractors for emergency pumping duties. Constructed from high specification cast-iron, each pump incorporates robustly engineered helical gears, oil bath lubrication of bearings and a quality mechanical seal to guarantee high efficiencies and a reliable and long maintenance free operational life. These pumps are fitted with the most modern devices and ensure an easy and reliable coupling to any type of tractor. Available both in centrifugal and self-priming centrifugal version. Each model is available both in cardan shaft driven version and with direct coupling to tractor p.t.o.



Rovatti T0F-50A mini compact and portable user friendly tractor driven pump with cardan shaft driven.

Rovatti T0F-50 mini compact and portable user friendly tractor driven pump with direct coupling to tractor p.t.o.

Features
■ Light and compact pump
■ Easy installation
■ Application flexibility
■ Available in self-priming execution
■ Available with trolleys and threepoint linkage

 Rovatti Mini Centrifugal and self-priming pto pumps

Rovatti T0A Mini PTO pump features 1

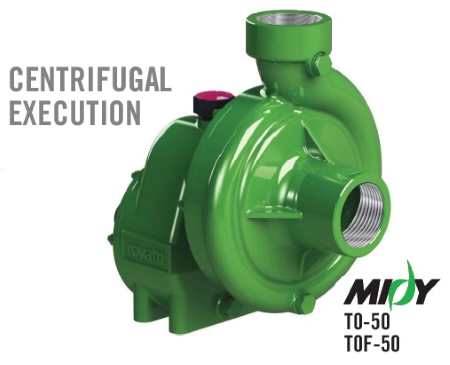

Rovatti-TOF-50-Centrifugal-pto-pumps

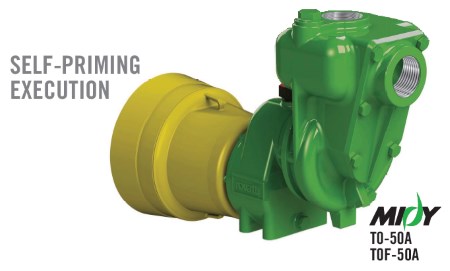

Rovatti-tof-50a-self-priming-pto-pump
Rovatti-tof-50-models
Rovatti T0 Mini PTO pump features 2

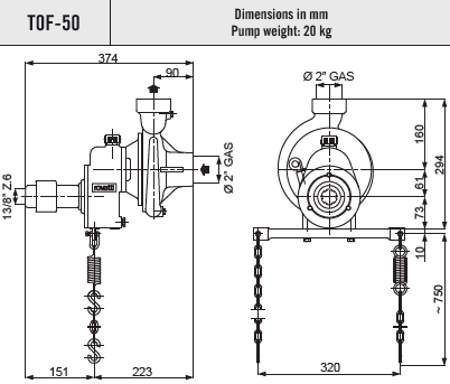

Rovatti-tof-50-dimensions

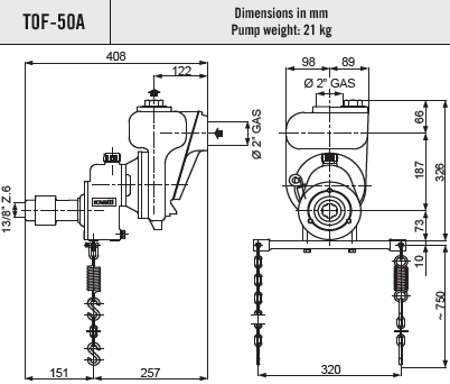

Rovatti-tof-50a-dimensions

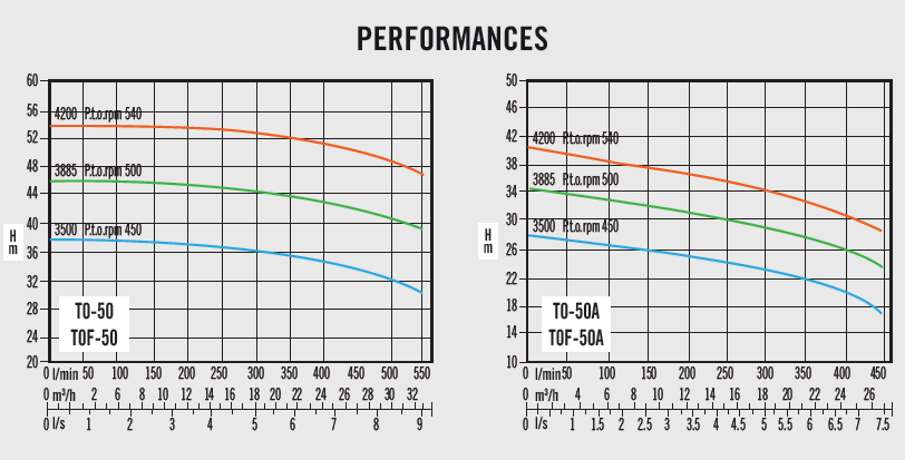

Rovatti-tof-50-performance-curve

Rovatti T0F-50 Series Technical Specifications
Pump Model Min. Tractor Power
(HP)
PTO min-1
X Gear ratio

Inlet X Outlet

(mm)

PTO R.P.M. m³/h 6 12 18 21 24 27 30 33
l/min 100 200 300 350 400 450 500 550
l/s 1.6 3.3 5 5.8 6.6 7.5 8.3 9.1

T0-50

T0F-50

Centrifugal

15 1 : 7.77

50 X 50

(2" x 2")

540 Head (m) 53.5 53.2 52.5 52 51.2 50.5 48.7 47
10 500 Head (m) 46 45.5 44.5 44 43 42 41 39.8
7.5 450 Head (m) 37.2 36.7 36 35.2 34.4 33.5 32.3 30.6

T0-50A

T0F-50A

Self-Priming

7.5 1 : 7.77

50 X 50

(2" x 2")

540 Head (m) 38.5 36.5 34.5 33.3 31.3 29
7.5 500 Head (m) 32.8 31 29.3 27.8 26 23.3
5 450 Head (m) 26.5 25 23 22 20.2 17

Rovatti single-stage mini centrifugal or self-priming high pressure pumps

Overgear driven by cardan shaft of PTO (TOF-50A) or direct connection (TOF-50). Axial inlet and scroll outlet.

Rovatti T0F-50 series compact and portable user friendly tractor driven centrifugal pumps have been designed by ROVATTI to satisfy a wide range of applications, including water transfer, irrigation, wash-down and bowser/tank filling, etc....The selection of plastic suction and delivery fittings reduces the overall weight to allow for a rapid transfer between tractors for emergency pumping duties. Constructed from high specification cast-iron, each pump incorporates robustly engineered helical gears, oil bath lubrication of bearings and a quality mechanical seal to guarantee high efficiencies and a reliable and long maintenance free operational life. These pumps are fitted with the most modern devices and ensure an easy and reliable coupling to any type of tractor. Available both in centrifugal and self-priming centrifugal version. Each model is available both in cardan shaft driven version and with direct coupling to tractor p.t.o.



Rovatti T0F-50A mini compact and portable user friendly tractor driven pump with cardan shaft driven.

Rovatti T0F-50 mini compact and portable user friendly tractor driven pump with direct coupling to tractor p.t.o.

Features
■ Light and compact pump
■ Easy installation
■ Application flexibility
■ Available in self-priming execution
■ Available with trolleys and threepoint linkage

 Rovatti Mini Centrifugal and self-priming pto pumps

Rovatti T0A Mini PTO pump features 1

Rovatti-TOF-50-Centrifugal-pto-pumps
Rovatti-tof-50a-self-priming-pto-pump
Rovatti-tof-50-models
Rovatti T0 Mini PTO pump features 2
Rovatti-tof-50-dimensions
Rovatti-tof-50a-dimensions

Rovatti-tof-50-performance-curve

Rovatti T0F-50 Series Technical Specifications
Pump Model Min. Tractor Power
(HP)
PTO min-1
X Gear ratio

Inlet X Outlet

(mm)

PTO R.P.M. m³/h 6 12 18 21 24 27 30 33
l/min 100 200 300 350 400 450 500 550
l/s 1.6 3.3 5 5.8 6.6 7.5 8.3 9.1

T0-50

T0F-50

Centrifugal

15 1 : 7.77

50 X 50

(2" x 2")

540 Head (m) 53.5 53.2 52.5 52 51.2 50.5 48.7 47
10 500 Head (m) 46 45.5 44.5 44 43 42 41 39.8
7.5 450 Head (m) 37.2 36.7 36 35.2 34.4 33.5 32.3 30.6

T0-50A

T0F-50A

Self-Priming

7.5 1 : 7.77

50 X 50

(2" x 2")

540 Head (m) 38.5 36.5 34.5 33.3 31.3 29
7.5 500 Head (m) 32.8 31 29.3 27.8 26 23.3
5 450 Head (m) 26.5 25 23 22 20.2 17
