Rovatti Multi Stage TK Series PTO Pumps

SKU: Rovatti-TK-PTO
Delivery date: 2-3 business days
Manufacturer: Rovatti Pompe

Best price gurantee on wide range of world's leading pump brand Rovatti

Capacity
:
12-30 m³/h
Head
:
101-138.5 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
30 HP
PTO RPM X Gear Ratio
:
500x6.43
Inlet Range
:
50 mm
Outlet Range
:
40 mm
US $2,910.00

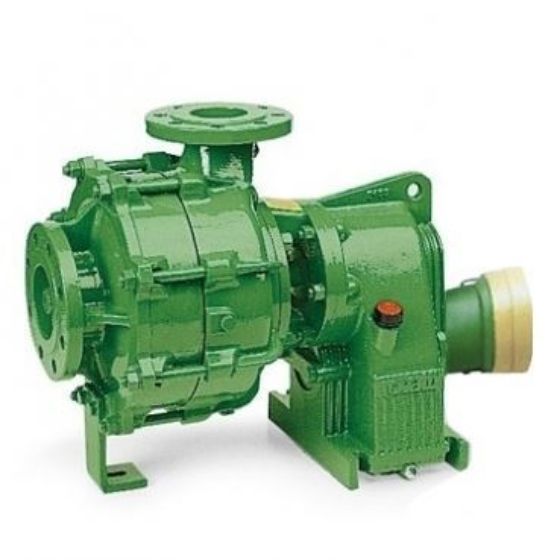

Rovatti multi-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti TK series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 30 m3/h and heads up to 101 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Packed gland version with Twinner System® (TK Europa)
■ Available with trolleys and threepoint linkage



 Download Rovatti TK Series PTO Pump Technical Spacifications



Rovatti TK Series Technical Specifications

Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 12 15 18 21 24 27 30 36 42 48 54 60 75
l/min 200 250 300 350 400 450 500 600 700 800 900 1000 1250
l/s 3.3 4.1 5 5.8 6.6 7.5 8.3 10 11.6 13.3 15 16.6 20.8

T2K-50/3E

30 500 x 6.43 50 X 40 2 Head (m) 138.5 136 131 125 118 110 101

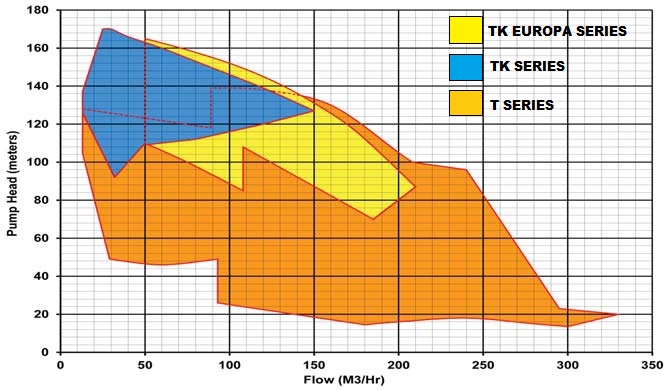

Rovatti T-TK Series PTO performance table

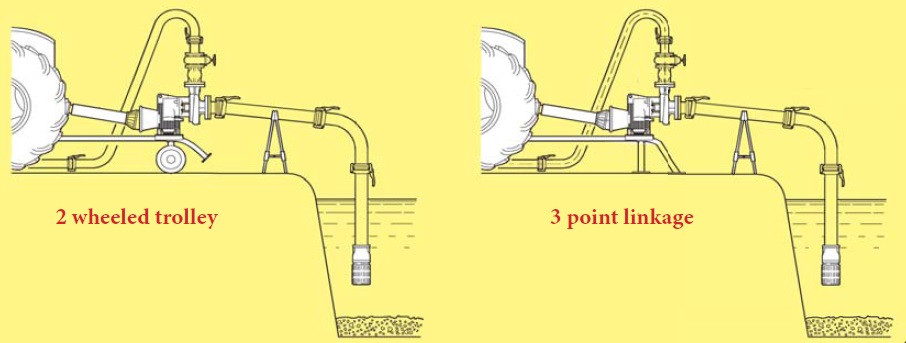

Rovatti-pto-pump-trolleys

Rovatti multi-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti TK series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 30 m3/h and heads up to 101 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Packed gland version with Twinner System® (TK Europa)
■ Available with trolleys and threepoint linkage



 Download Rovatti TK Series PTO Pump Technical Spacifications



Rovatti TK Series Technical Specifications

Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 12 15 18 21 24 27 30 36 42 48 54 60 75
l/min 200 250 300 350 400 450 500 600 700 800 900 1000 1250
l/s 3.3 4.1 5 5.8 6.6 7.5 8.3 10 11.6 13.3 15 16.6 20.8

T2K-50/3E

30 500 x 6.43 50 X 40 2 Head (m) 138.5 136 131 125 118 110 101



Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Rovatti Pompe

Since 1952 Rovatti Pompe, owned by Rovatti family, manufactures and develops centrifugal pumps for submersible and surface installations in Italy. Over the years the Company has diversified its activity from the production of pumps for agricultural applications to include pumps for industry, drainage, and sewage.

Rovatti Pompe is the right partner of every Company around the world because it is able to respond quickly and efficiently to the rapid market trends. The wide range of centrifugal pumps produced, the well-established experience in the field and the continuous production quality improvement, summarize the potential fielded by the Company. The value of the employees which work for the Company, finally complete the driving force behind the entire Rovatti group.

Rovatti has always been heavily engaged in an active programme of research and development with particular attention to technological innovations, manufacturing processes, market analysis and to the protection of the environment contributing to a better quality of life.

World's leading Rovatti Pompe manufactures and develops centrifugal pumps for submersible and surface installations since 1952. Rovatti produces wide range of centrifugal pumps with well-established experience in the field and the continuous production quality. All Rovatti pumps are manufactured according to international standards and technical specifications of the customer to successfully satisfy many application areas.

All Rovatti pumps are manufactured according to international standards and technical specifications of the customer to successfully satisfy many application areas. Technologically innovative products that provide maximum performance with minimum energy consumption, able to offer the highest security level, maintenance-free and ease of use conditions.

■ Municipal water supply

■ Water supply

■ Seawater applications

■ Drainage

■ Construction site dewatering

■ Domestic water supply

■ Firefighting

■ Conditioning systems

■ Treatment plants

■ Reverse osmosis systems

■ Washdown systems

■ Pressure boosting

■ Cooling water systems

■ Livestock systems

■ Snow making systems

■ Groundwater supply

■ General industry

■ Domestic sewage

■ Storm water collecting

■ Filling tanks and reservoirs

■ Irrigation systems

■ Spraying systems

■ Liquid transfer

■ Water treatment

*
*
*
