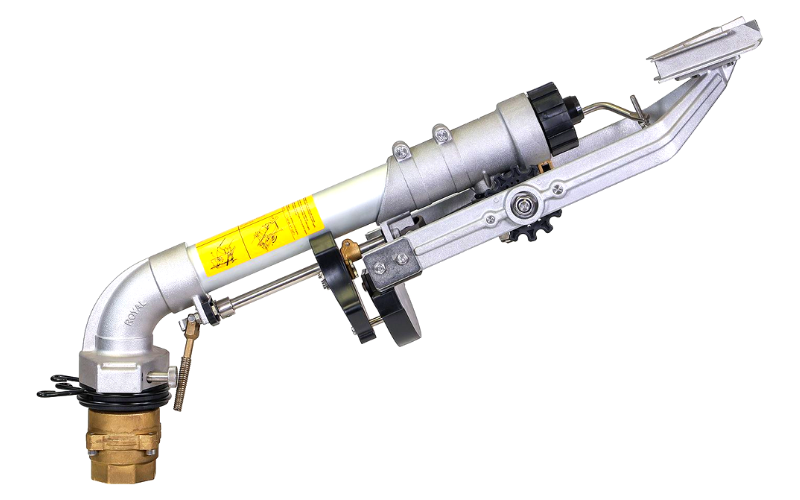

SIME Royal 2" Impact Sprinkler Full Circle or Part Circle

Particularly suitable for all types of irrigators, can also be used for center pivots and normal installations.


Water Input
:
2" Female BSP

Working Pressure
:
23 - 85 psi

Water Flow
:
110 - 880 l/min

Shooting Radius
:
22 - 51 m

Nozzles
:
14, 16, 18, 20, 22 mm

Body Angle
:
24°

Weight
:
7.8 kg

Operation
:
Full & Part Circle

Material
:
Cast-Iron, Aluminium, Brass

Made in
:
Italy
US $708.00
Manufacturer: SIME
SKU: Sime Royal
In stock
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

SIME Royal 2" Impact Sprinkler with Nozzle Set!

We guarantee 100% satisfaction!

Sprinkler of medium capacity and pressure, rotating at full circle or parts circle, with slow return. Particularly suitable for all types of travelling irrigators, can be used also for center pivots and normal installations.

An intermittent and adjustable jet-breaker working only on the return, allows to get a uniform distribution of rain fall all over the irrigated area. Its operation, of entirely new conception, prevent any vibrations and counter strokes, granting absolute safety to the user. It works without problems also slope wise.

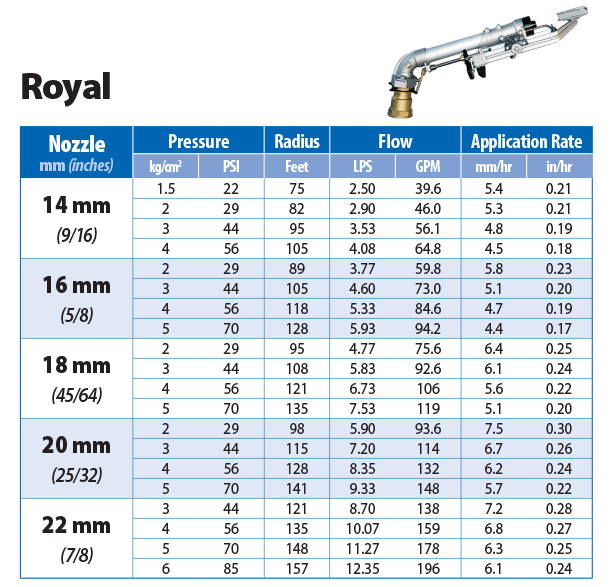

Technical Specifications
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler

Irrigated Area

Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 mm/h
14 .55 1.5 22 23 75 150 9.0 39.6 1662 5.4
14 .55 2 29 25.5 84 174 10.4 46 2041 5.1
14 .55 3 44 30 98 212 12.7 56.1 2826 4.5
14 .55 4 56 33.5 110 245 14.7 64.8 3523 4.2
16 .63 2 29 27 89 226 13.5 59.8 2289 5.8
16 .63 3 44 32 105 276 16.5 73 3217 5.1
16 .63 4 56 36 118 320 19.2 84.6 4069 4.7
16 .63 5 70 39 128 356 21.3 94.2 4775 4.4
18 .71 2 29 29 95 286 17.1 75.6 2640 6.4
18 .71 3 44 34 112 350 21 92.6 3629 5.8
18 .71 4 56 38 125 404 24.2 106 4534 5.3
20 .78 2 29 31 102 354 21.2 93.6 3017 7
20 .78 3 44 36 115 432 25.9 114 4069 6.4
20 .78 4 56 40 128 501 30 132 5024 6
20 .78 5 70 44 141 560 33.6 148 6079 5.5
22 .86 3 44 37 122 522 31.3 138 4298 7.2
22 .86 4 56 42.5 140 604 36.2 159 5671 6.4
22 .86 5 70 45 148 676 40.5 178 6358 6.3
22 .86 6 85 48 158 741 44.4 196 7238 6.1

SIME Royal 2" Impact Sprinkler with Nozzle Set!

We guarantee 100% satisfaction!

Sprinkler of medium capacity and pressure, rotating at full circle or parts circle, with slow return. Particularly suitable for all types of travelling irrigators, can be used also for center pivots and normal installations.

An intermittent and adjustable jet-breaker working only on the return, allows to get a uniform distribution of rain fall all over the irrigated area. Its operation, of entirely new conception, prevent any vibrations and counter strokes, granting absolute safety to the user. It works without problems also slope wise.



Technical Specifications
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler

Irrigated Area

Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 mm/h
14 .55 1.5 22 23 75 150 9.0 39.6 1662 5.4
14 .55 2 29 25.5 84 174 10.4 46 2041 5.1
14 .55 3 44 30 98 212 12.7 56.1 2826 4.5
14 .55 4 56 33.5 110 245 14.7 64.8 3523 4.2
16 .63 2 29 27 89 226 13.5 59.8 2289 5.8
16 .63 3 44 32 105 276 16.5 73 3217 5.1
16 .63 4 56 36 118 320 19.2 84.6 4069 4.7
16 .63 5 70 39 128 356 21.3 94.2 4775 4.4
18 .71 2 29 29 95 286 17.1 75.6 2640 6.4
18 .71 3 44 34 112 350 21 92.6 3629 5.8
18 .71 4 56 38 125 404 24.2 106 4534 5.3
20 .78 2 29 31 102 354 21.2 93.6 3017 7
20 .78 3 44 36 115 432 25.9 114 4069 6.4
20 .78 4 56 40 128 501 30 132 5024 6
20 .78 5 70 44 141 560 33.6 148 6079 5.5
22 .86 3 44 37 122 522 31.3 138 4298 7.2
22 .86 4 56 42.5 140 604 36.2 159 5671 6.4
22 .86 5 70 45 148 676 40.5 178 6358 6.3
22 .86 6 85 48 158 741 44.4 196 7238 6.1
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 73 psi (5 bar)
Minimum Required Water Flow 185 l/min
Maximum Water Flow 550 l/min
Minimum Shooting Range 21 - 25 m
Maximum Shooting Range 30 - 40 m
Nozzles 14, 16, 18, 20, 22, 24 mm
