Sorry - this product is no longer available

Turbine drive, soft hose travelling irrigator suitable for agricultural irrigation and mining sites.

Run Length
:
300 or 400 m
Lay Flat Hose
:
3" - 3.5" - 4"
Working Pressure
:
90 - 110 psi
Water Flow
:
455 - 1583 l/min
Effective Spray Width
:
80 - 110 m
Speed
:
10 - 90 m/hour
Sprinkler
:
Nelson SR 150R
Mechanism
:
Turbine drive, 4-Speed Automotive type Gear Box & Travel Shut Off
Weight
:
750 kg
Construction
:
Heavy duty welded chassis all hot dip galvanized
Call for pricing
SKU: Trailco-T300
Out of stock
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

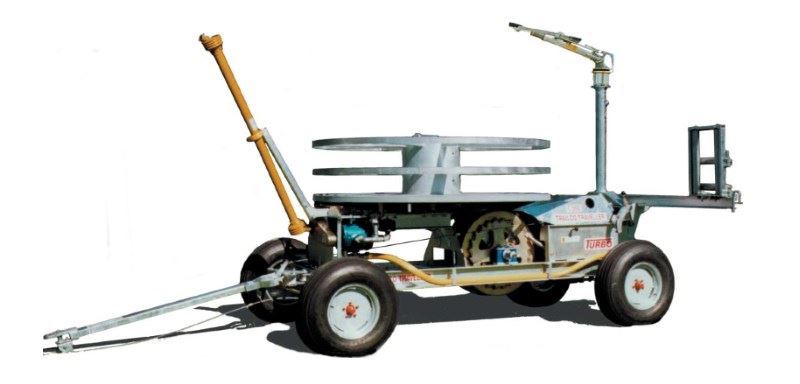

Trailco T300 TURBO Travelling Irrigator

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Extreme Versatility: The travellers will irrigate a very wide range of crops and will operate well in very irregular shaped fields and on extremely undulating terrain.
  • Very Low Labour Requirement: The travellers can easily be operated by one man and the labour consists mainly of driving a tractor.
  • Portable: The travellers are ideal for irrigating widely scattered areas. The can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the traveller provides a high uniformity of water application. Distribution of the water is very even.
  • Ability to Work Around Obstructions: The travellers are compact units and can operate around power poles, trees or buildings with no problem.
  • Easy to service:All serviceable parts conveniently located for ease of maintenance and adjustments.
  • Pressure Gauge:Sprinkler fitted with high quality liquid filled pressure gauge.
  • Compact Concept with very short turning circle for easier handling, mounted on four wheels for stability.
  • Flotation Tyres with the same track front and rear to minimise bogging and soil compaction.
  • Wide Wheel Track and High Clearance Wide wheel track to suit average row crop spacings and high ground clearance for reduced crop damage.
  • Tachometer Fitted to Turbine for ease of setting Travel Speed.
  • Clutch When pulling out cable, the Turbine Drive is disengaged by means of a Dog Clutch (No Gear & Reduction Boxes turning). Saving on wear to Gears. Meaning longer operating life.
  • Longer Life All main parts galvanised or plated for maximum protection.
  • Angus Premium Hi-Flow Hose top quality irrigation hose which carries a 10 year warranty. THE HOSE IS NOT INCLUDING THE PRICE
  • Steering Mechanism: Accurate automotive type steering mechanism for maximum stability and excellent tracking.
  • Cable Drum Brake prevents over-run and possible damage when towing out cable.
  • Cable Drum Rewind Handle for easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
  • Automatic Brakes allow the machine to start at the end of the path with the hose turned neatly behind the tyres eliminating the need for a long anchor loop. The brakes release automatically when the hose drag is sufficient.
  • Automatic Start Up Mechanically activated self engagement mechanism for automatic start-up and forward travel, lessening the need to return to the irrigator following start-up.



Trailco Turbo Drive

  • The turbine drive provides the Power to pull the Turbo Traveller & Hose along the cable in tough conditions.
  • The power is developed as a result of water flow, not pressure, which can allow the Turbo Traveller to operate at low pressures, saving on energy costs.
  • The Turbine has few moving parts to wear, less to go wrong. Simple and easy to use.
  • Four Speed Automotive type Gear Box coupled to the turbine provides the Turbo Traveller with a wide range of travel speeds to suit your particular crop water requirements.
  • The volume of water entering the Turbine is controlled by a Diverter Valve, which when used with the Four Speed Gearbox, provides the Turbo Traveller with Infinite range of travel speeds to suit differing crop water requirements.
  • No Filters required for the Turbine Drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

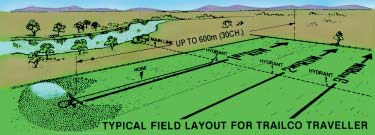

Trailco typical field layout

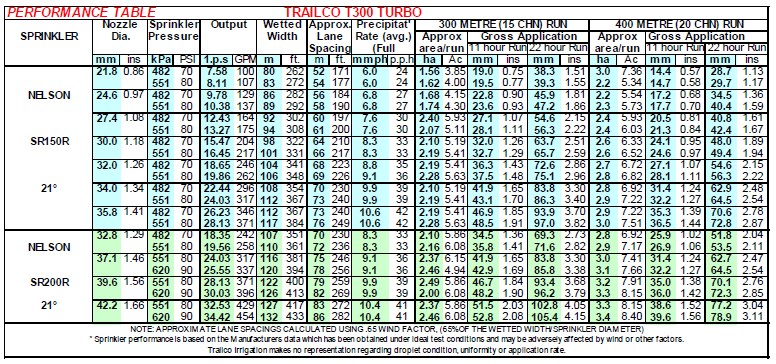

Trailco T300 Performance Chart
