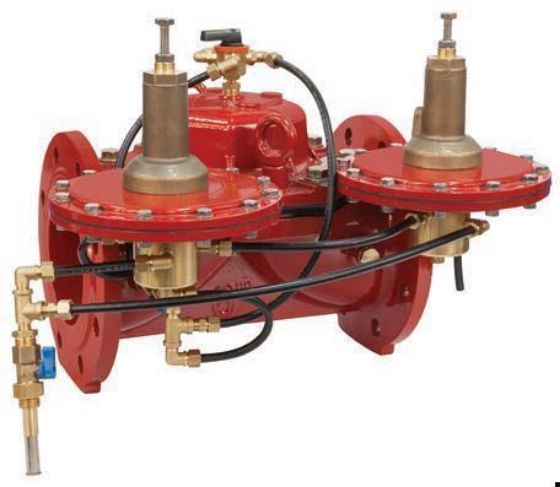

Bi-Level Altitude Controlled Valve

SKU: 600-Series-ALT-B
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Bi-Level Altitude Controlled Valve controls the water volume without float in an elevated tank.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
US $994.00
*
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*

Armas 600 Series - Bi-Level Altitude Controlled Valves

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey

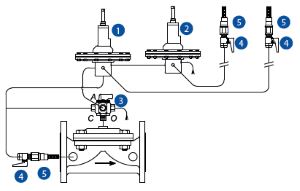

Bi-Level Altitude Controlled Valves 600 series parts

ARMAS 600 Series Bi-Level Altitude Controlled Valves

Armas Bi-Level Altitude Controlled Valves is an automatic, high sensitive double pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valves opens or close the main valve in response to the static pressure of water level in tank. The pilot valves located outside the tank tower. There is no need any floats. One of the pilot valve control the main valve according to minimum water level. The other one control the main valve according to maximum water level.

COMPONENTS:

  1. Altitude Pilot
  2. Altitude Pilot
  3. 3- Way Selector Valve
  4. Ball Valves
  5. In-line Finger Filters

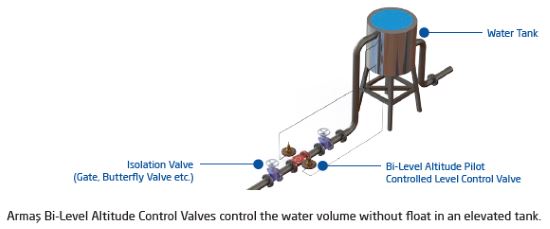

ARMAS 600 Series Bi-Level Altitude Controlled Valves Sample Application

Bi-Level Altitude Controlled Valves 600 series sample
