Differential Pressure Sustaining Control Valve

Differential Pressure Sustaining Valves sustain pressure difference of two different points which is located in the system.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
US $447.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-DIF
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
+ -

Armas 600 Series - Differential Pressure Sustaining Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Differential Pressure Sustaining Control Valve 600 series parts

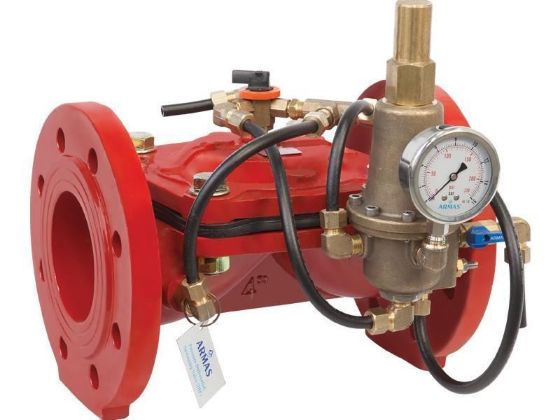

ARMAS 600 Series Differential Pressure Sustaining Control Valve

Armaş Differential Pressure Sustaining Control Valve is the hydraulic control valve which maintains a preset pressure differential between its upstream and downstream sides. Required upstream pressure can be adjusted by the pilot easily. The valve can control heating and cooling systems, booster pump discharge, bypass lines, filters and other similar systems.

COMPONENTS:

  1. 3- Way Selector Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Differential Pressure Sustaining Pilot
  5. Pressure Gauge

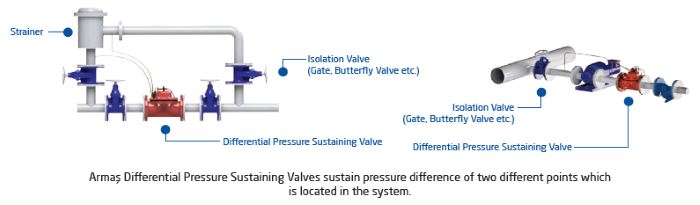

ARMAS 600 Series Differential Pressure Sustaining Control Valve Sample Application

Differential Pressure Sustaining Control Valve 600 series sample

Armas 600 Series - Differential Pressure Sustaining Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Differential Pressure Sustaining Control Valve 600 series parts

ARMAS 600 Series Differential Pressure Sustaining Control Valve

Armaş Differential Pressure Sustaining Control Valve is the hydraulic control valve which maintains a preset pressure differential between its upstream and downstream sides. Required upstream pressure can be adjusted by the pilot easily. The valve can control heating and cooling systems, booster pump discharge, bypass lines, filters and other similar systems.

COMPONENTS:

  1. 3- Way Selector Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Differential Pressure Sustaining Pilot
  5. Pressure Gauge

ARMAS 600 Series Differential Pressure Sustaining Control Valve Sample Application

Differential Pressure Sustaining Control Valve 600 series sample
