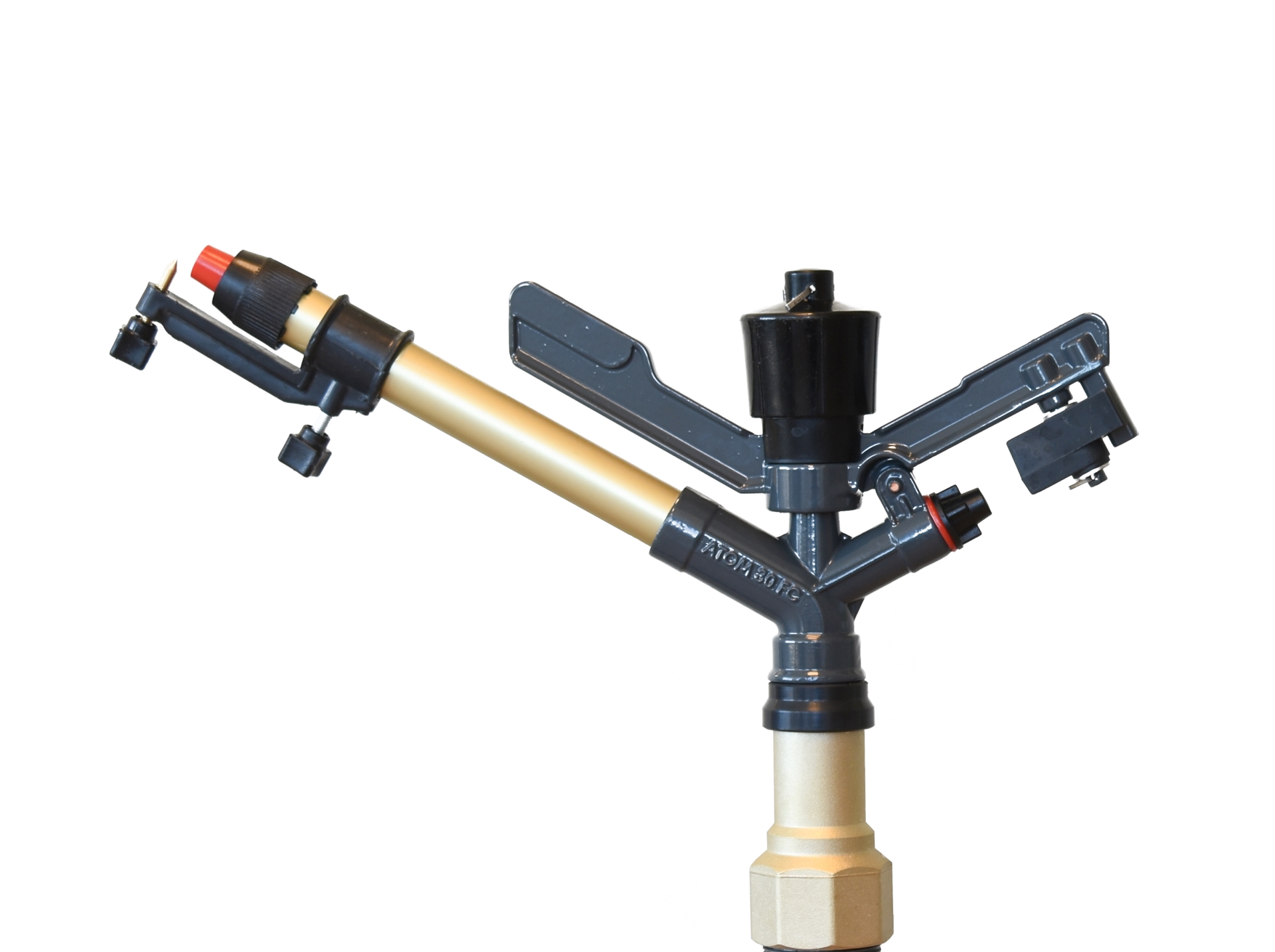

DuCaR Atom 30 FC Metal

Two trajectories, long throw, metal & brass, FULL circle, wide range irrigation sprinkler.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 65 psi

Water Flow
:
100 - 383 l/min

Shooting Radius
:
17 - 30 m

Free Nozzles
:
8, 10, 12, 14 mm

Body Angle
:
27°

Box Dimensions
:
40x25x6 cm

Weight
:
1.5 kg

Sprayers
:
2

Material
:
Cast-Iron, Aluminium & Brass

Made in
:
Turkey
US $103.00
US $123.00
Manufacturer: DuCaR Sprinklers
SKU: Atom30-FC
Free shipping
Delivery date 2-3 business days
+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar Atom 30 FC Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR Atom 30 FC Metal sprinkler:

  • Comes with 4 different nozzles (8, 10, 12, 14 mm)
  • 2 Trajectories (Small one drives the sprinkler)
  • Runs on pressure range between 29 to 65 psi
  • Full circle irrigation
  • Irrigates up to 60m diameter!
  • Lays down 6 to 23 tons of water per hour
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
8 0.31 2 29 17 56 100 6,00 26 907 0,22 6,6
8 0.31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 0.31 4 56 21 69 141,7 8,50 37 1385 0,34 6,1
10 0.39 2 29 18 59 130 7,80 34 1017 0,25 7,7
10 0.39 3 44 21 69 160 9,60 42 1385 0,34 6,9
10 0.39 4 56 22,5 74 185 11,10 49 1590 0,39 7,0
10 0.39 5 70 24,5 80 208,3 12,50 55 1885 0,47 6,6
12 0.47 2 29 19 62 168,3 10,10 44 1134 0,28 8,9
12 0.47 3 44 22 72 206,7 12,40 55 1520 0,38 8,2
12 0.47 4 56 25 82 241,7 14,50 64 1963 0,48 7,4
12 0.47 5 70 27 89 270 16,20 71 2289 0,57 7,1
14 0.55 2 29 22 72 211,7 13,00 57 1520 0,38 8,4
14 0.55 3 44 25 82 241,7 14,50 64 1963 0,48 7,4
14 0.55 4 56 27 89 300 18,00 79 2289 0,57 7.9

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar Atom 30 FC Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR Atom 30 FC Metal sprinkler:

  • Comes with 4 different nozzles (8, 10, 12, 14 mm)
  • 2 Trajectories (Small one drives the sprinkler)
  • Runs on pressure range between 29 to 65 psi
  • Full circle irrigation
  • Irrigates up to 60m diameter!
  • Lays down 6 to 23 tons of water per hour
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
8 0.31 2 29 17 56 100 6,00 26 907 0,22 6,6
8 0.31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 0.31 4 56 21 69 141,7 8,50 37 1385 0,34 6,1
10 0.39 2 29 18 59 130 7,80 34 1017 0,25 7,7
10 0.39 3 44 21 69 160 9,60 42 1385 0,34 6,9
10 0.39 4 56 22,5 74 185 11,10 49 1590 0,39 7,0
10 0.39 5 70 24,5 80 208,3 12,50 55 1885 0,47 6,6
12 0.47 2 29 19 62 168,3 10,10 44 1134 0,28 8,9
12 0.47 3 44 22 72 206,7 12,40 55 1520 0,38 8,2
12 0.47 4 56 25 82 241,7 14,50 64 1963 0,48 7,4
12 0.47 5 70 27 89 270 16,20 71 2289 0,57 7,1
14 0.55 2 29 22 72 211,7 13,00 57 1520 0,38 8,4
14 0.55 3 44 25 82 241,7 14,50 64 1963 0,48 7,4
14 0.55 4 56 27 89 300 18,00 79 2289 0,57 7.9
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 85 psi (6 bar)
Minimum Required Water Flow 100 l/min
Maximum Water Flow 400 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 30 - 40 m
Box Dimension 25x40x6 cm
Nozzles 12, 14, 16, 18 mm
Weight 1.5 kg
