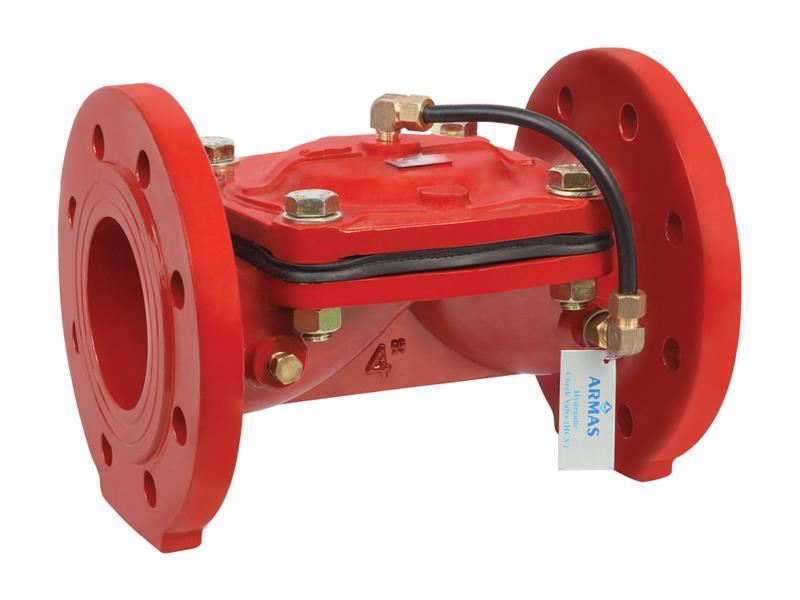

Hydraulic Check Valve

Be the first to review this product

Hydraulic Check Valves prevent back-flow.

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $137.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-HCV

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - Hydraulic Check Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

ARMAS 600 Series Hydraulic Check Valve

Armas Hydraulic Check Valve is hydraulically controlled check valve which operates with line pressure and prevents back-flow in system. When downstream pressure value exceeds upstream pressure value, valve is closed as wholly sealed without causing surge. When upstream pressure value exceeds downstream pressure value, check valve is opened by itself slowly. So it damps pressure surges formed during start-up.

COMPONENTS:

In-line Finger Filter
Plug

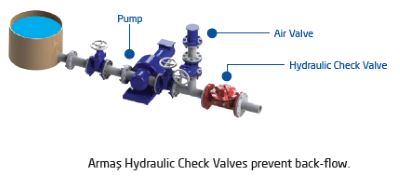

ARMAS 600 Series Hydraulic Check Valve Sample Application
