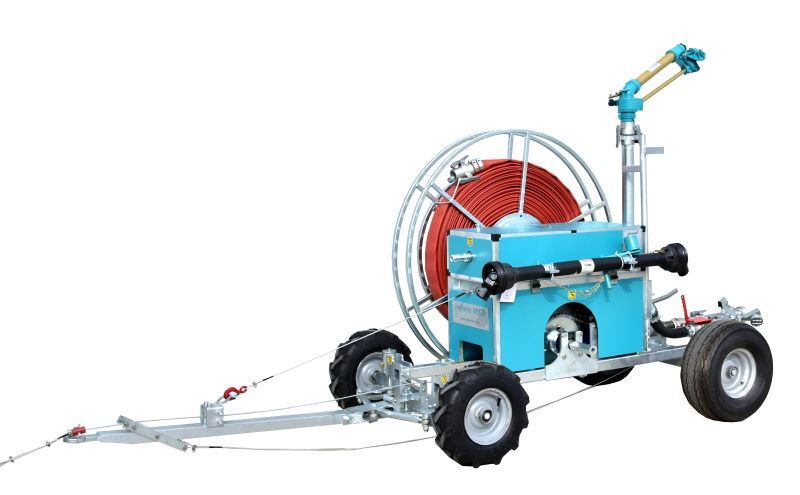

IrriCruiser MIDI PLUS Travelling Irrigator

DuCaR IrriCruiser MIDI PLUS - New Generation Turbine Drive Travelling Irrigator with PTO Driven Hose Reel

Applications

Agriculture: Small crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

• Hot dip galvanised chassis & Aluminium frame
• Patented travel shut-off mechanism.
• High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
• Single speed gear box
• Speed Control Valve: Precise speed control between 10 m/h and 70 m/h
• Compact design, easy to use and store
• Emergency stop mechanism
• PTO Driven Integrated Hose reel
• Portable: The DuCaR IrriCruiser MIDI PLUS is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
• Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
• Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
• Easy and safe operation
• Very low labour requirement: The DuCaR IrriCruiser MIDI PLUS can easily be operated by one man and the labour consists mostly of driving a tractor.
• Cable length 200 m
• Lay Flat Hose : 100m of 2.5" Premium Drag Hose
• Required water flow : 300 - 600 l/min
• Designed in Australia, made in Turkey

New Generation DuCaR IrriCruiser Aluminium Turbine System

• The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
• DuCaR IrriCruiser MIDI PLUS develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
• DuCaR IrriCruiser MIDI PLUS allows you to adjust a wide range of travel speeds to suit your particular crop water requirements, so you can save a lot of energy.
• The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCruiser with infinite range of travel speeds to suit different crop water requirements.
• The turbine’s RPM and travelling speed is read on accurate digital tachometers.
• No Filters required for the turbine drive.
• No exhaust water from the turbine drive, all water is distributed through the sprinkler.

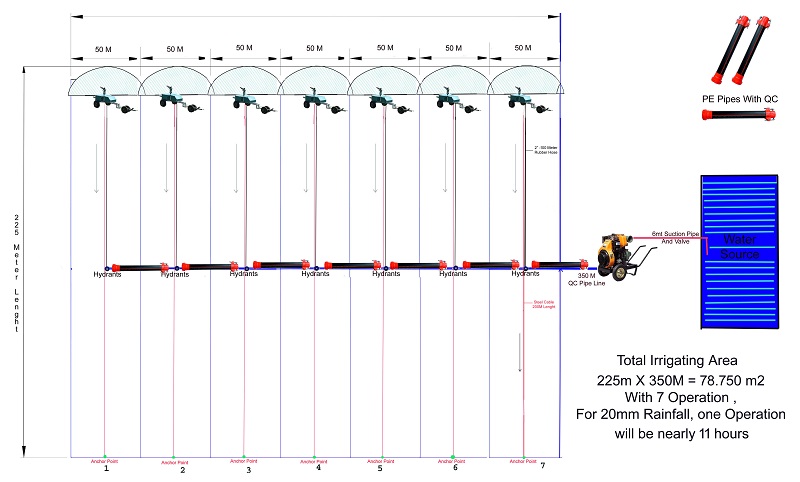

DuCaR IrriCruiser MIDI PLUS Typical Method of Operation
