PLC Controlled Valve

Be the first to review this product

PLC Controlled Valves control pressure or flow rate according to received signals from PLC Control unit

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $417.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-EC

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - PLC Controlled Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

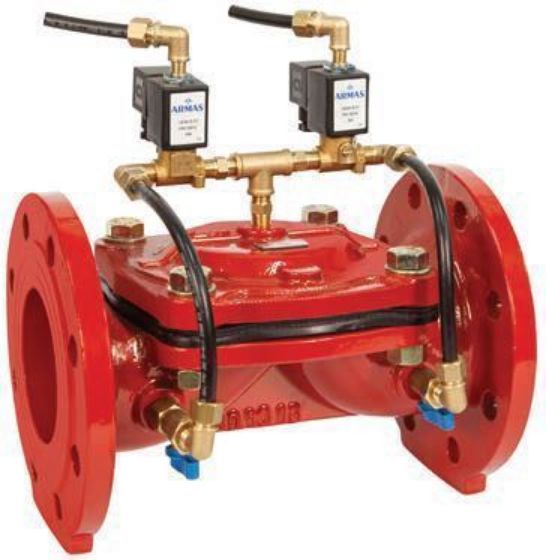

ARMAS 600 Series PLC Controlled Valve

Armas PLC Controlled Valves are enabled local or remote control of various applications such as time related applications, different the batching operation of liquid, automatic control systems. The main valve is controlled by two solenoids that controlled by a PLC controller. The valve have simple and reliable design that works with low power

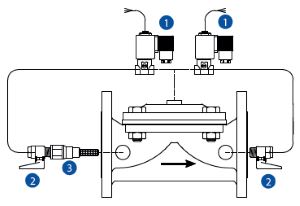

COMPONENTS:

Solenoid Pilot Valve
Ball Valves
In-line Finger Filter

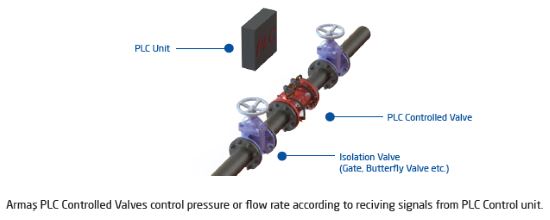

ARMAS 600 Series PLC Controlled Valve Sample Application
