Pressure Reducing and Sustaining Control Valve

Be the first to review this product

Pressure Reducing and Sustaining Valves can be used for avoiding any interaction of high altitude and low altitude usage areas which is fed by same line

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $198.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-PRPS

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Threaded

Not available
Grooved End

Not available
Flanged

Not available

Threaded Valve Size: *

Threaded Valve Max Working Pressure: *

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

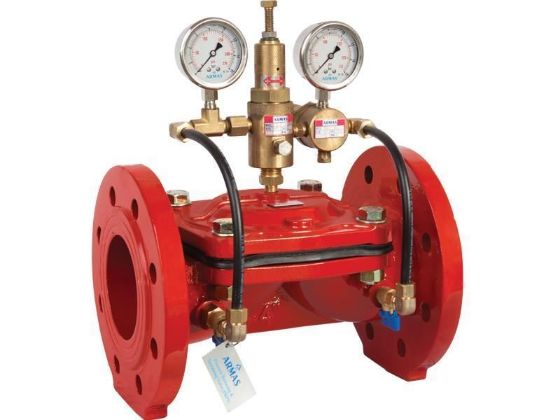

Armas 600 Series - Pressure Reducing and Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

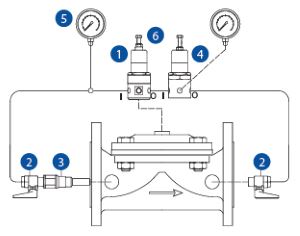

Pressure reducing and sustaining control valve parts

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve

Armas Pressure Reducing and Sustaining Control Valve reduces valve downstream pressure to desired value by sustaining upstream pressure. Two pilot valves exist on valve. Pilot valve on upstream side is the pressure sustaining pilot valve and sustains upstream pressure. Other pilot valve is pressure reducing pilot valve and keeps downstream pressure constant by reducing it to desired value. It controls upstream and downstream pressure continuously and keeps them within constant values.

COMPONENTS:

Pressure Sustaining Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Reducing Pilot Valve
Pressure Gauges
Adjustment Bolt

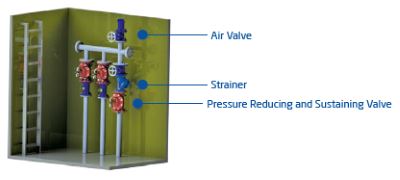

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve Sample Application
