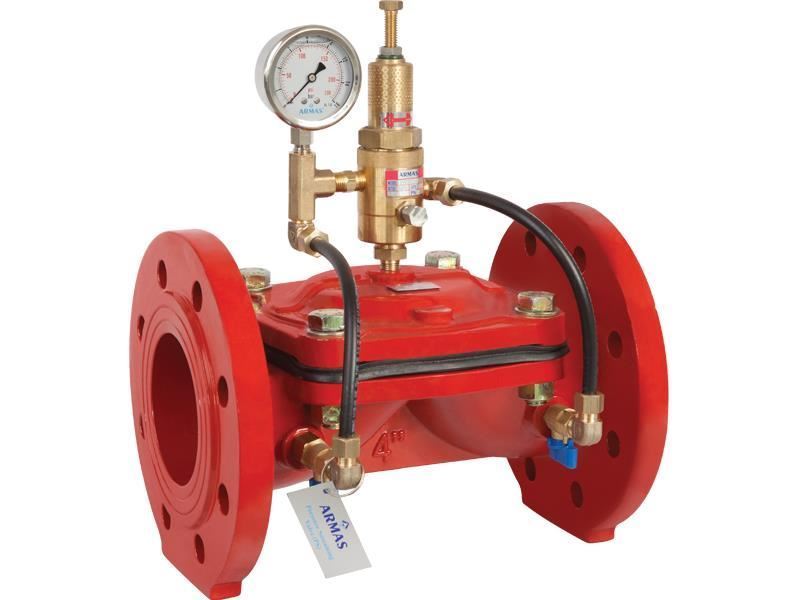

Pressure Sustaining Control Valve

SKU: 600-Series-PS
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Pressure Sustaining Valves maintains valve upstream pressure value constant and control upstream pressure to provide a good condition operating for pump systems

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
US $164.00
*
  • Threaded
    Threaded
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*
*
*

Armas 600 Series - Pressure Sustaining Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Pressure sustaining control valve

ARMAS 600 Series Pressure Sustaining Control Valve

Armas Pressure Sustaining Control Valve maintains valve upstream pressure value constant. Valve is opened when line pressure reaches adjusted valve pressure level. It ensures that pump motor within pumping systems will start without load. It also prevents positive pressure waves caused by pump during start-up. Valve controls upstream pressure value continuously and keeps it in a constant value without being affected from changes in flow rates. When no flow exists, it is closed by itself as fully tightness.

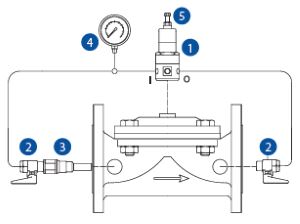

COMPONENTS:

  1. Pressure Reducing Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Pressure Gauge
  5. Adjustment Bolt

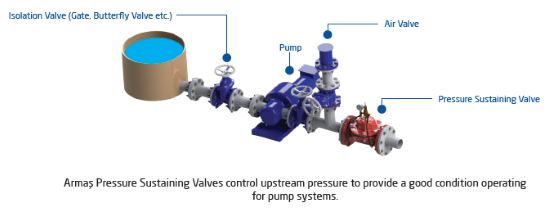

ARMAS 600 Series Pressure Sustaining Control Valve Sample Application

Pressure sustaining control valve sample
