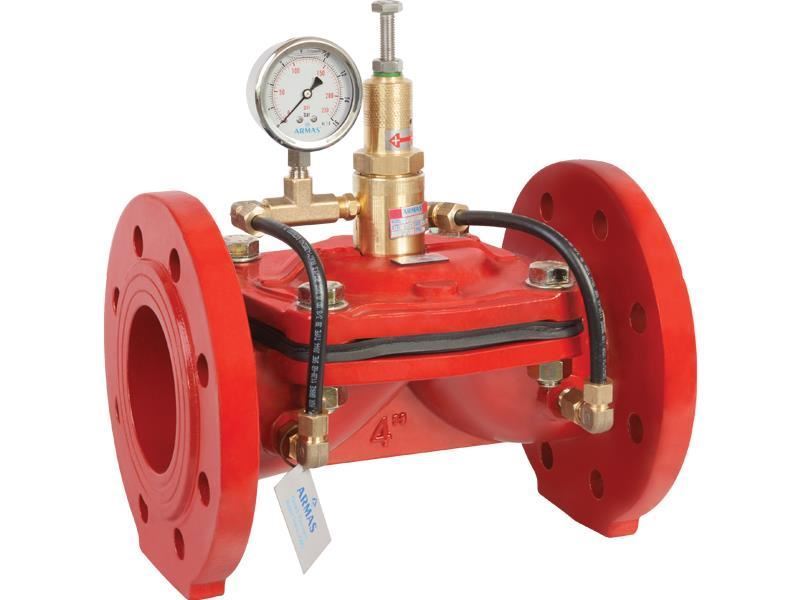

Quick Pressure Relief Control Valve

Quick Pressure Relief Valves protect pipe-line and system equipment during pressure fluctuations.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
US $128.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-QR
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Threaded
    Threaded
    Not available
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
*
*
+ -

Armas 600 Series - Quick Pressure Relief Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Quick Pressure control valve is mounted on network in TE configuration.
  • Since valve’s function is to release pressure, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter. Following empirical formula may be used in determining diameter of quick pressure relief control valve.
  • Valve closing time is proportional with pipe length. As system pipe length increases, valve closing time should be increased.
  • Made in Turkey

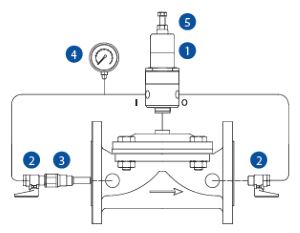

Quick Pressure relief control valve 600 series parts

ARMAS 600 Series Quick Pressure Relief Control Valve

Armas Quick Pressure Relief Control Valve is the safety control valve designed to protect system by releasing pressure surges to atmosphere quickly caused from sudden changes in water speed because pumps put into/out of service frequently in water network elevation lines. When network pressure goes beyond set point, valve opens by itself quickly and protects system by releasing over pressure. When line pressure decreases to normal level, it is closed slowly and automatically as wholly sealed without causing surge.

COMPONENTS:

  1. Quick Pressure Relief Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Pressure Gauge
  5. Adjustment Bolt

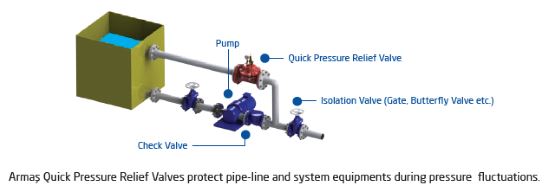

ARMAS 600 Series Quick Pressure Relief Control Valve Sample Application

Quick Pressure relief control valve 600 series sample
