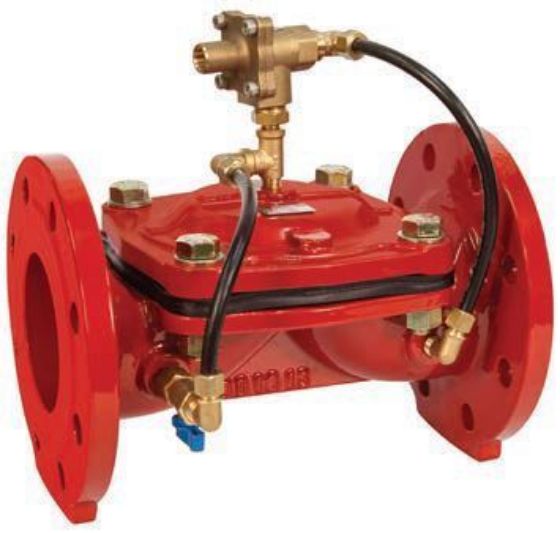

Remote Control Valve

Be the first to review this product

Remote Control Valves are activated by a remote pressure signal.

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $191.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-RC

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - Remote Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Deep-well Pump control valve is mounted on network in TE configuration since it is a electric activated release valve.
Since valve’s function is to release, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
Made in Turkey

ARMAS 600 Series Remote Control Valve

Armas Excessive Flow Shut-off Control Valve is activated by the line pressure. The valve is a hydraulic control valve closes drip tight when flow rate exceeds the set value. The valve is fully open when flow rate is below the set rate. A differantial 3 way pilot valve and orifis are on valve which immediately closes drip tihgt itself when flow rate exceeds the set value. This feature allows prevent waste water such as burst pipe damage. The valve is open manual after auto closing. It is set auto after the fully opening will be provided.

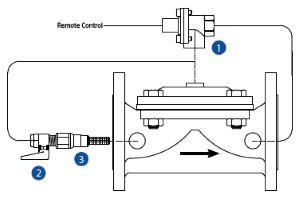

COMPONENTS:

Flow Rate Control Pilot
Ball Valve
3- Way Selector Valve
Limit Switch Assemble
Orifice
In-line Finger Filter

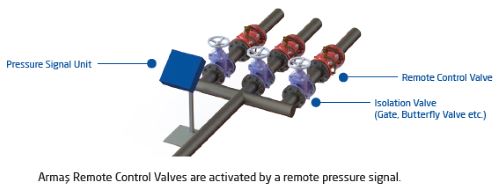

ARMAS 600 Series Remote Control Valve Sample Application
