Armas 600 Series - Two Stage Opening Valve

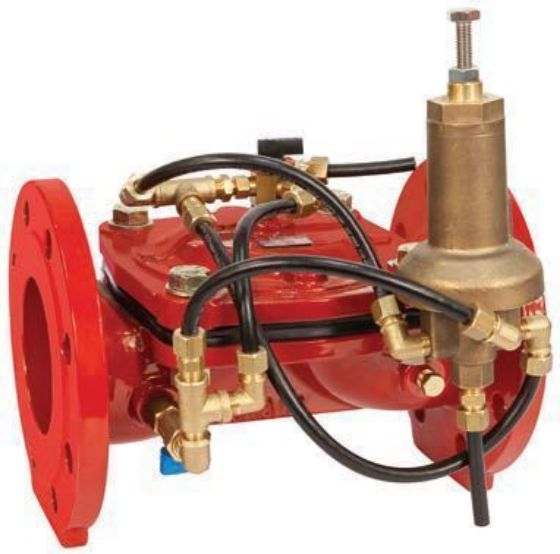

ARMAS 600 Series Two Stage Opening Valve
Armas two stage opening valve is used all lines will be fast filled, it can be used to prevent damage caused by fast filling. Until the low pressure port of the pilot is completely filled, flow of valve is restricted and then allowed to fully opening. It can be used with other control valves for filling the system with high water speed.

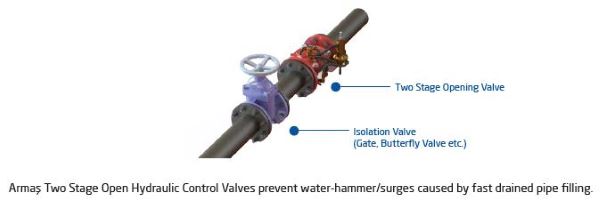

ARMAS 600 Series Two Stage Opening Valve Sample Application
Armas 600 series valves are the direct diaphragm closing automatic hydraulic control valves which work with line pressure. It ensures easy and smooth flow with minimum pressure losses thanks to excellent design of valve body and diaphragm. No wearable parts such as stem, bearing and seat exist in main valve body, valve life is much longer than other competitor valves. Only movable part of valve is diaphragm. Armas 600 serial hydraulic control valves are designed so that it can be used in potable water force network, agricultural irrigation, fire fighting, filtration, industrial applications by even an unskilled personal.
It is automatic hydraulic control valve designed for make desired modulation processes in main valve network line as full hydraulically by means of line pressure without requiring different energy sources such as electric, pneumatic on mechanic energy.
VALVE CLOSING MODE
When pilot valves connected on main valve transport water pressure in valve upstream to valve actuator (control chamber), water creates a hydraulic power on valve diaphragm. This power formed, by combining with extra power applied by inner spring, ensures that valve will be closed as full tightness.
VALVE OPENING MODE
When way of pilot valve located on main valve being in closed position is brought into relief position, pressurized water within control chamber on main valve diaphragm is released. When line pressure (P1) reaches to the value which will overcome spring power, water carries valve to fully open position by applying a hydraulic power to valve diaphragm from bottom.
Pilot valves which are connected to main valve actuator ensure that main valve works in modulated mode. According to flow rate or pressure conditions, it ensures that main valve works in modulated mode by controlling pressure of fluid within main valve actuator (control chamber).
Download 600 Series Hydraulic Control Valves Catalogue
Threaded Angle - (BSPT or NPT)
