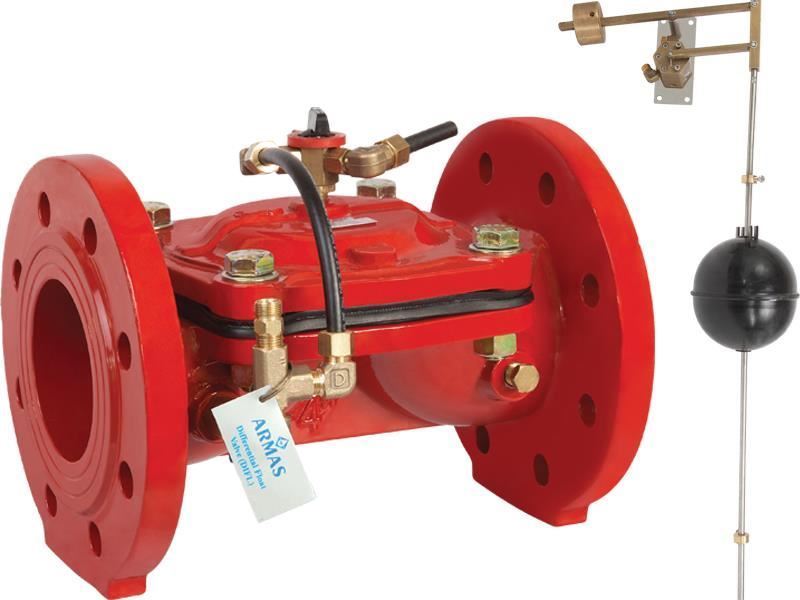

Differential Float Level Control Valve

Be the first to review this product

Differential Float Level Control Valves control minimum and maximum water levels at water tanks thanks to its differential float.

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $445.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-DIFL

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - Differential Float Level Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

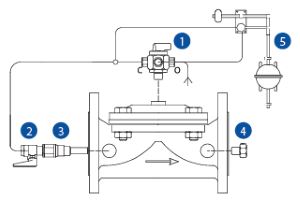

Differential Float Level Control Valve 600 series parts

ARMAS 600 Series Differential Float Level Control Valve

Armas Differential Float Level Control Valve is the hydraulic control valve designed to control water level in reservoirs and tanks in desired ranges. Main valve is closed as wholly sealed without surge when water reach desired level thanks to 4/3 way differential control pilot. Max. and min. water level in reservoir may be adjusted to desired value in a wide range. Thanks to this feature, pump does not put into/out of service frequently during level control of reservoir fed by pump. Valve controls water level and keeps it in desired range without being affected from flow rate and pressure changes.

COMPONENTS:

3- Way Selector Valve
Ball Valves
In-line Finger Filter
Plug
Differential Level Control Pilot Valve

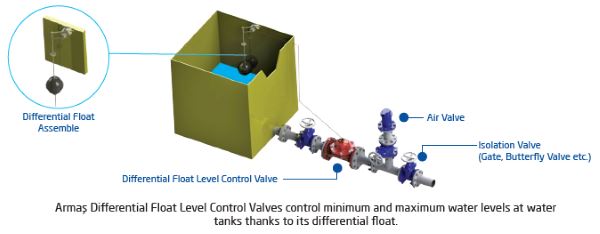

ARMAS 600 Series Differential Float Level Control Valve Sample Application

Differential Float Level Control Valve 600 series sample
