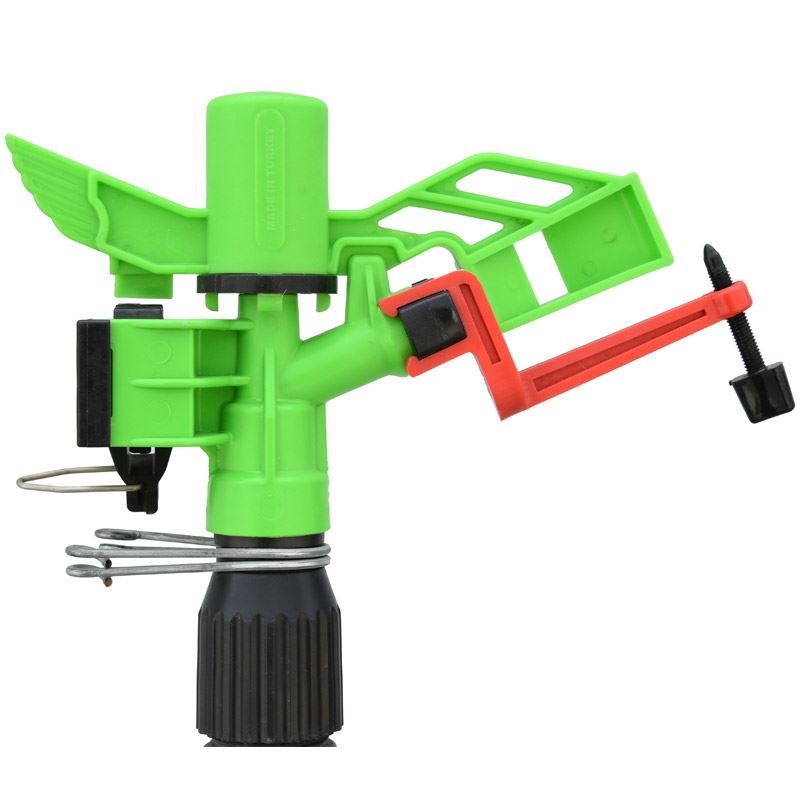

DuCaR Atom 15PC LOW Flow

SKU: Atom15PC-LF
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

UV resistant, perfect uniformity, plastic, impact part circle sprinkler. Suitable for residential irrigation.


Water Input
:
1" Female BSP

Working Pressure
:
29 - 50 psi

Water Flow
:
15 - 28.7 l/min

Shooting Radius
:
13 - 16 m

Nozzles
:
4, 4.5, 5 mm

Body Angle
:
23°

Weight
:
0.25 kg

Operation
:
Full & Part Circle

Material
:
Plastic
US $14.00

IrrigationBox proudly presents revolutionary new generation low volume DuCar Atom 15 PC LOW FLOW sprinkler!

We guarantee 100% satisfaction!

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It is a male rotor 1” circular farm, made of engineering plastic.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1

IrrigationBox proudly presents revolutionary new generation low volume DuCar Atom 15 PC LOW FLOW sprinkler!

We guarantee 100% satisfaction!

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It is a male rotor 1” circular farm, made of engineering plastic.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
Existing reviews
Works great!
Best sprinkler I have found so far. Thinking of buying another! That way I can have two for front field and two for back!
From: Guest | Date: 8/12/2012 8:11 PM
Was this review helpful? Yes No (1/0)
Awesome!
Better quality and infinitely better than I ever hoped. I will certainly buy another one. Thanks!!
From: Guest | Date: 10/16/2012 7:40 AM
Was this review helpful? Yes No (1/0)
Great quality
These Ducar B 25 sprinklers are made of great quality! Fast shipping. Thanks
From: Guest | Date: 3/14/2013 9:36 PM
Was this review helpful? Yes No (1/0)
Ducar
Fast payment fast feedback thank you very much hope we do more soon.
From: Guest | Date: 1/17/2014 12:44 AM
Was this review helpful? Yes No (1/0)
Sprinkler
Hi we are very happy with the sprinklers and the service is great thanks! we would definitely recommend you to our friends
From: Guest | Date: 1/23/2014 9:48 AM
Was this review helpful? Yes No (1/0)
Ducar B25 Econ
Great unit
From: Guest | Date: 8/4/2014 12:41 AM
Was this review helpful? Yes No (0/0)
Good!
Nice little spray.Good value
From: Guest | Date: 8/21/2014 12:47 AM
Was this review helpful? Yes No (0/0)
Perfect!
I definitely recommend!
From: Guest | Date: 3/20/2015 9:44 PM
Was this review helpful? Yes No (0/0)

DuCaR Sprinklers

Established in 1981 and headquartered in Turkey, is one of the leader irrigation sprinkler manufacturing companies in the world. It offers products and services ranging from gear driven, impact irrigation sprinklers, connection stands, pumps, and complete irrigation system design. Since agricultural and industrial irrigation needs vary for different environmental effects, producing only couple of different types of sprinklers does not meet the all requirments in different regions and countries. Hence why DuCaR Sprinklers offers custom designed sprinkler systems to meet all farmers' requirements around the world.

Its fully automated latest technology manufactirng system, CNC machines and CAD & CAM software systems enable them to produce accurate and defect free products.

DuCaR Sprinklers works with farmers and scientists around the world to improve irrigation systems' quality to promote sustainable agriculture with best prices.

DuCaR-Sprinklers-Logo
Made-in-Turkey

*
*
*

These irrigation calculators will help compute your irrigation needs based on your growing practices, types of soil, and vegetation.

Popular Calculators

Irrigation Management Calculators

  • Irrigation Frequency: maximum interval allowed between irrigations. This is dependent on soil type, root zone depth, and the water use rate of the crop.
  • Set Irrigation Times: set time required to fulfill a given water application, irrigation area, and flow rate.
  • Water Depth: Depth of water applied to a specified area over the specified time span based on the given flow rate.
  • Water Application Rate: Application rate using the flow rate on an area.

Drip Irrigation Calculators

Sprinkler Irrigation Calculators

Center Pivot Irrigation Calculators

Residential Irrigation Calculators

General Design Calculators

Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
