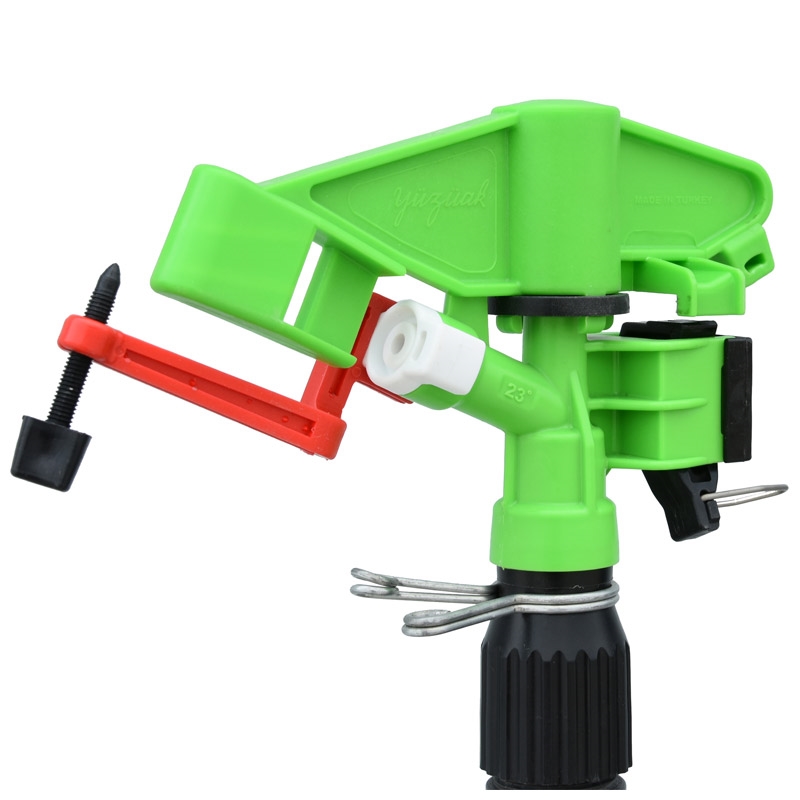

DuCaR Atom 15PC

SKU: Atom15PC
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

UV resistant, perfect uniformity, plastic, impact part circle sprinkler. Buy 50, Get $200 Discount.


Water Input
:
1" Female BSP

Working Pressure
:
29 - 64 psi

Water Flow
:
22 - 46 l/min

Shooting Radius
:
14 - 18 m

Suitable Nozzles
:
5, 5.5, 6, 6.5 mm

Body Angle
:
23°

Weight
:
0.25 kg

Operation
:
Full & Part Circle

Material
:
Plastic
US $14.00

IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 15 PC sprinkler!

We guarantee 100% satisfaction!

The atom 15 PC sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC sprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 5.5 mm (white) nozzle.



Technical Specifications (DuCaR Atom 15 PC)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
5,0 2,0 29 14,0 46 22,5 1,35 5,9 615 0,15 2,2
5,0 2,5 36 15,0 49 24,3 1,46 6,4 707 0,17 2,1
5,5 2,0 29 14,5 48 26,3 1,58 7,0 660 0,16 2,4
5,5 2,5 36 15,5 51 29,3 1,76 7,7 754 0,19 2,3
5,0 3,0 43 15,5 51 26,5 1,59 7,0 754 0,19 2,1
5,0 3,5 50 16,0 52 28,7 1,72 7,6 804 0,20 2,1
5,5 3,0 43 16,0 52 32,2 1,93 8,5 804 0,20 2,4
5,5 3,5 50 16,5 54 34,7 2,08 9,2 855 0,21 2,4
5,0 4,5 64 16,5 54 32,5 1,95 8,6 855 0,21 2,3
5,5 4,5 64 17,4 57 39,3 2,36 10,4 951 0,23 2,5
6,0 2,0 29 15,0 49 31,3 1,88 8,3 707 0,17 2,7
6,0 2,5 36 16,0 52 35,0 2,10 9,2 804 0,20 2,6
6,5 2,5 36 16,5 54 41,0 2,46 10,8 855 0,21 2,9
6,5 2,0 29 15,5 51 36,7 2,20 9,7 754 0,19 2,9
6,5 3,5 50 17,2 56 48,5 2,91 12,8 929 0,23 3,1
6,0 3,0 43 16,5 54 38,3 2,30 10,1 855 0,21 2,7
6,0 3,5 50 17,2 56 41,3 2,48 10,9 907 0,22 2,7
6,5 3,0 43 16,7 55 45,0 2,70 11,9 876 0,22 3,1
6,5 4,5 64 18,1 59 55,0 3,30 14,5 1029 0,25 3,2
6,0 4,5 64 18,0 59 46,8 2,81 12,4 1017 0,25 2,8

IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 15 PC sprinkler!

We guarantee 100% satisfaction!

The atom 15 PC sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC sprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 5.5 mm (white) nozzle.



Technical Specifications (DuCaR Atom 15 PC)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
5,0 2,0 29 14,0 46 22,5 1,35 5,9 615 0,15 2,2
5,0 2,5 36 15,0 49 24,3 1,46 6,4 707 0,17 2,1
5,5 2,0 29 14,5 48 26,3 1,58 7,0 660 0,16 2,4
5,5 2,5 36 15,5 51 29,3 1,76 7,7 754 0,19 2,3
5,0 3,0 43 15,5 51 26,5 1,59 7,0 754 0,19 2,1
5,0 3,5 50 16,0 52 28,7 1,72 7,6 804 0,20 2,1
5,5 3,0 43 16,0 52 32,2 1,93 8,5 804 0,20 2,4
5,5 3,5 50 16,5 54 34,7 2,08 9,2 855 0,21 2,4
5,0 4,5 64 16,5 54 32,5 1,95 8,6 855 0,21 2,3
5,5 4,5 64 17,4 57 39,3 2,36 10,4 951 0,23 2,5
6,0 2,0 29 15,0 49 31,3 1,88 8,3 707 0,17 2,7
6,0 2,5 36 16,0 52 35,0 2,10 9,2 804 0,20 2,6
6,5 2,5 36 16,5 54 41,0 2,46 10,8 855 0,21 2,9
6,5 2,0 29 15,5 51 36,7 2,20 9,7 754 0,19 2,9
6,5 3,5 50 17,2 56 48,5 2,91 12,8 929 0,23 3,1
6,0 3,0 43 16,5 54 38,3 2,30 10,1 855 0,21 2,7
6,0 3,5 50 17,2 56 41,3 2,48 10,9 907 0,22 2,7
6,5 3,0 43 16,7 55 45,0 2,70 11,9 876 0,22 3,1
6,5 4,5 64 18,1 59 55,0 3,30 14,5 1029 0,25 3,2
6,0 4,5 64 18,0 59 46,8 2,81 12,4 1017 0,25 2,8
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 64 psi (4.5 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Nozzles End Plug - 3.6 - 4.0 - 4.5 - 5.0 - 5.5 - 6.0 - 6.5 mm
Weight 0.30 kg
