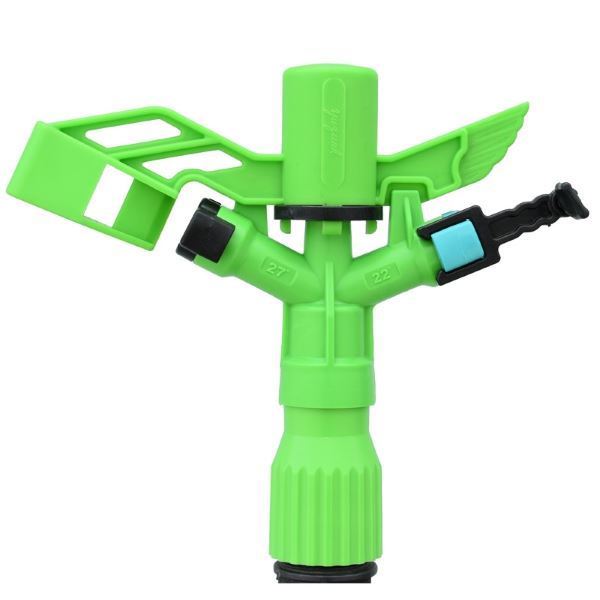

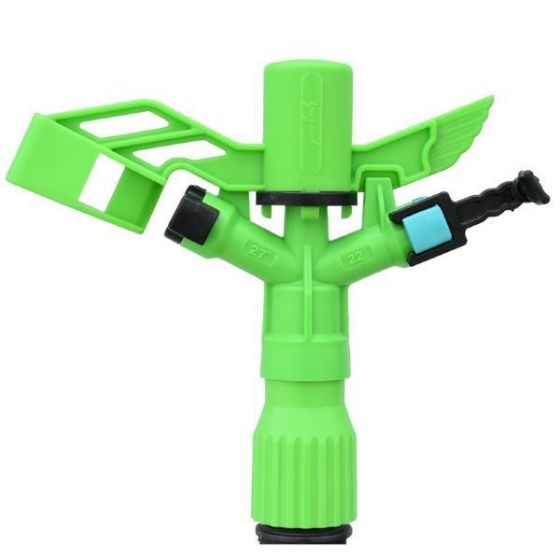

DuCaR Atom 15FC LOW Flow

SKU: Atom15FC-LF
Delivery date: 3-5 business days
Manufacturer: DuCaR Sprinklers

UV resistant, plastic impact sprinkler with switchable arm. Suitable for residential irrigation.


Water Input
:
1" Female BSP

Working Pressure
:
29 - 64 psi

Water Flow
:
16 - 42.5 l/min

Shooting Radius
:
13 - 16.5 m

Nozzles
:
End Plug, 2.5 mm (Secondary); 4, 4.5, 5 mm

Body Angle
:
22° & 27°

Weight
:
0.25 kg

Operation
:
Full Circle

Material
:
Plastic
US $10.00

IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 15 FC LOW Flow sprinkler!

We guarantee 100% satisfaction!

ONE sprinkler does the same job that TWO different sprinklers do. World's first plastic low volume impact sprinkler with SWITCHABLE ARM!

The atom 15 FC low flow sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for low flow rate and pressure fixed irrigation installation and over-tree irrigation of orchards, vineyards and nurseries.

Comes with 3 NOZZLES (End Plug - 2.5 - 5 mm) and a jet breaker.

The Atom 15 FC sprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 270, optimum irrigation can be ensured. Thanks to its nozzle used as a blind plug, your sprinkler head can be also used with only one trajectory. In windy regions, the arm can be switched easily and water outlet of 220 can be used as a driver trajectory. Thanks to this, it will spray the water from a lower point and so, the impact of wind will be the minimum.

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. “It is a male rotor 1” circular farm, made of engineering plastic and has two references depending on the angle of mounting.

The Atom 15FC low flow sprinkler can work with one or two nozzle. The main nozzle is 27° inclination to the horizontal plane and the secondary 22°.

These nozzles can be used in four combinations to suit the different working conditions.

1) Main nozzle 27°, second nozzle 22° for standard conditions.

2) Main nozzle 22°, second nozzle 27° for windy conditions.

3) Main nozzle 27°, second nozzle closed for standard low water applications.

4) Main nozzle 22°, second nozzle closed for windy low water applications.



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 1 NOZZLE)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 2.0 29 13.0 43 15.0 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.4 6.2 707 0.17 2.0
5 2 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5 2.5 36 15.5 49 24.3 1.46 6.4 707 0.17 2.1
5 3 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 2 NOZZLES)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4mm x 2,5mm 3 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm x 2,5mm 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4mm x 2,5mm 2.0 29 13 43 18,3 1.10 4.8 531 0.13 2.1
4mm x 2,5mm 3.5 50 14.6 48 27.5 1.65 7.3 669 0.17 2.5
4mm x 2,5mm 4.5 64 15.0 49 30.3 1.82 8.0 707 0.17 2.6
4mm x 2,5mm 2.0 29 13.0 43 25.8 1.55 6.8 531 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm x 2,5mm 2.5 36 13.5 44 28.3 1.70 7.5 572 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 30.3 1.82 8.0 660 0.16 2.8
4.5mm x 2,5mm 3.5 50 15.0 49 34.2 2.05 9 707 0.17 2.9
4.5mm x 2,5mm 4.5 64 15.5 51 37.5 2.25 9.9 754 0.19 3.0
5mm x 2,5mm 2 29 14.0 46 29.2 1.75 7.7 615 0.15 2.8
5mm x 2,5mm 2.5 36 15.0 49 32.5 1.95 8.6 707 0.17 2.8
5mm x 2,5mm 3 43 15.5 51 35.8 2.15 9.5 754 0.19 2.9
5mm x 2,5mm 3.5 50 16.0 52 38.3 2.3 10.1 804 0.20 2.9
5mm x 2,5mm 4.5 64 16.5 54 42.5 2.55 11.2 855 0.21 3

IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 15 FC LOW Flow sprinkler!

We guarantee 100% satisfaction!

ONE sprinkler does the same job that TWO different sprinklers do. World's first plastic low volume impact sprinkler with SWITCHABLE ARM!

The atom 15 FC low flow sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for low flow rate and pressure fixed irrigation installation and over-tree irrigation of orchards, vineyards and nurseries.

Comes with 3 NOZZLES (End Plug - 2.5 - 5 mm) and a jet breaker.

The Atom 15 FC sprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 270, optimum irrigation can be ensured. Thanks to its nozzle used as a blind plug, your sprinkler head can be also used with only one trajectory. In windy regions, the arm can be switched easily and water outlet of 220 can be used as a driver trajectory. Thanks to this, it will spray the water from a lower point and so, the impact of wind will be the minimum.

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. “It is a male rotor 1” circular farm, made of engineering plastic and has two references depending on the angle of mounting.

The Atom 15FC low flow sprinkler can work with one or two nozzle. The main nozzle is 27° inclination to the horizontal plane and the secondary 22°.

These nozzles can be used in four combinations to suit the different working conditions.

1) Main nozzle 27°, second nozzle 22° for standard conditions.

2) Main nozzle 22°, second nozzle 27° for windy conditions.

3) Main nozzle 27°, second nozzle closed for standard low water applications.

4) Main nozzle 22°, second nozzle closed for windy low water applications.



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 1 NOZZLE)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 2.0 29 13.0 43 15.0 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.4 6.2 707 0.17 2.0
5 2 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5 2.5 36 15.5 49 24.3 1.46 6.4 707 0.17 2.1
5 3 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 2 NOZZLES)

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4mm x 2,5mm 3 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm x 2,5mm 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4mm x 2,5mm 2.0 29 13 43 18,3 1.10 4.8 531 0.13 2.1
4mm x 2,5mm 3.5 50 14.6 48 27.5 1.65 7.3 669 0.17 2.5
4mm x 2,5mm 4.5 64 15.0 49 30.3 1.82 8.0 707 0.17 2.6
4mm x 2,5mm 2.0 29 13.0 43 25.8 1.55 6.8 531 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm x 2,5mm 2.5 36 13.5 44 28.3 1.70 7.5 572 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 30.3 1.82 8.0 660 0.16 2.8
4.5mm x 2,5mm 3.5 50 15.0 49 34.2 2.05 9 707 0.17 2.9
4.5mm x 2,5mm 4.5 64 15.5 51 37.5 2.25 9.9 754 0.19 3.0
5mm x 2,5mm 2 29 14.0 46 29.2 1.75 7.7 615 0.15 2.8
5mm x 2,5mm 2.5 36 15.0 49 32.5 1.95 8.6 707 0.17 2.8
5mm x 2,5mm 3 43 15.5 51 35.8 2.15 9.5 754 0.19 2.9
5mm x 2,5mm 3.5 50 16.0 52 38.3 2.3 10.1 804 0.20 2.9
5mm x 2,5mm 4.5 64 16.5 54 42.5 2.55 11.2 855 0.21 3
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 64 psi (4.5 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

DuCaR Sprinklers

Established in 1981 and headquartered in Turkey, is one of the leader irrigation sprinkler manufacturing companies in the world. It offers products and services ranging from gear driven, impact irrigation sprinklers, connection stands, pumps, and complete irrigation system design. Since agricultural and industrial irrigation needs vary for different environmental effects, producing only couple of different types of sprinklers does not meet the all requirments in different regions and countries. Hence why DuCaR Sprinklers offers custom designed sprinkler systems to meet all farmers' requirements around the world.

Its fully automated latest technology manufactirng system, CNC machines and CAD & CAM software systems enable them to produce accurate and defect free products.

DuCaR Sprinklers works with farmers and scientists around the world to improve irrigation systems' quality to promote sustainable agriculture with best prices.

DuCaR-Sprinklers-Logo
Made-in-Turkey

*
*
*

These irrigation calculators will help compute your irrigation needs based on your growing practices, types of soil, and vegetation.

Popular Calculators

Irrigation Management Calculators

  • Irrigation Frequency: maximum interval allowed between irrigations. This is dependent on soil type, root zone depth, and the water use rate of the crop.
  • Set Irrigation Times: set time required to fulfill a given water application, irrigation area, and flow rate.
  • Water Depth: Depth of water applied to a specified area over the specified time span based on the given flow rate.
  • Water Application Rate: Application rate using the flow rate on an area.

Drip Irrigation Calculators

Sprinkler Irrigation Calculators

Center Pivot Irrigation Calculators

Residential Irrigation Calculators

General Design Calculators

Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 64 psi (4.5 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
