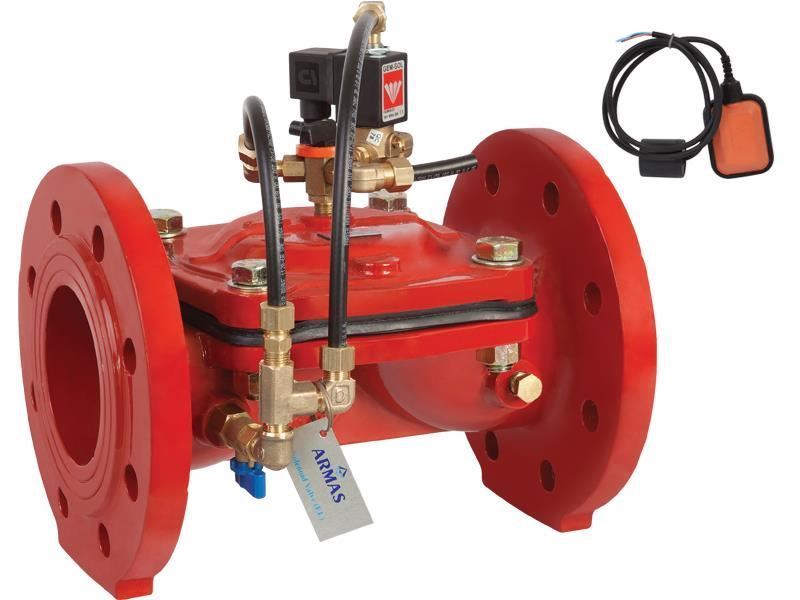

Electric Float Level Control Valve

SKU: 600-Series-FLEL
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Electric Float Level Control Valves prevent water tank overflow thanks to electric float.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
US $206.00
*
  • Threaded
    Threaded
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*
*
*

Armas 600 Series - Electric Float Level Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey

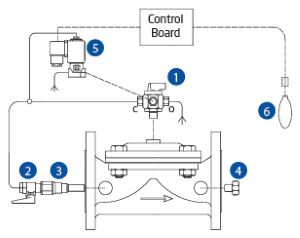

Electric Float level control valve parts

ARMAS 600 Series Electric Float Level Control Valve

Armaş Electric Float Level Control Valve is the hydraulic control valve designed to control water level continuously by means of electrical float placed in reservoirs and tanks. Electrical float sends signal to solenoid coil on main valve when water level decreases below set level. Main valve is opened and ensures that tank or reservoir will be filled permanently. When water reaches maximum level, electrical float sends signal to solenoid coil again and main valve is closed as full sealed.

COMPONENTS:

  1. 3- Way Selector Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Plug
  5. Solenoid Pilot Valve
  6. Electric Float Switch

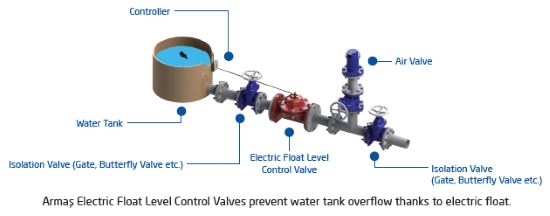

ARMAS 600 Series Electric Float Level Control Valve Sample Application

Electric float level control valve sample
