Sorry - this product is no longer available

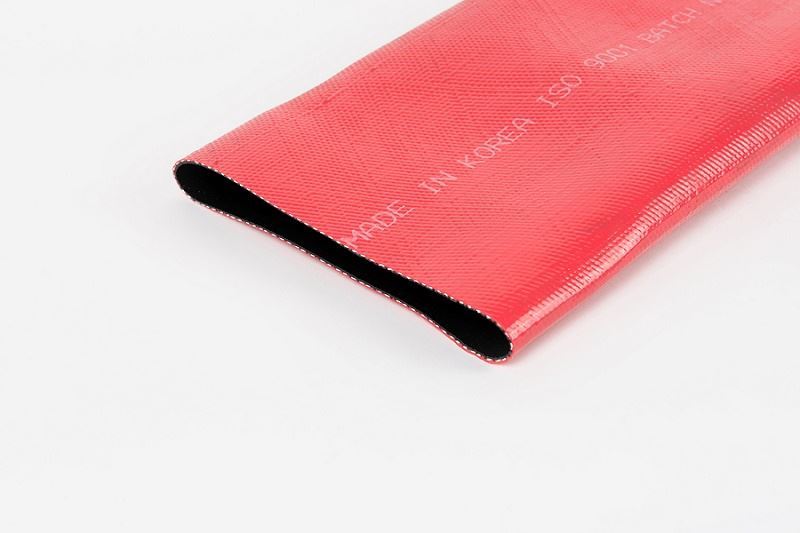

Ko-Hi Flex Red PVC Double Layer Mid Pressure Layflat Hoses

MEDIUM pressure PVC lay flat hose with NBR (Nitrile Rubber) TUBE inside! Premium quality, durable, best price & quality.


Inside Diameter Range
:
1.5" (38 mm) - 12" (305 mm)

Wall Thickness
:
2.1 - 3.5 mm

Working Pressure Range
:
90 - 150 psi (7 - 10 Bar)


Made in South Korea
US $02.00
SKU: KH-30
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

*Indicated prices are per metre. Please select a hose size to update the price above.

Ko-Hi Flex KH-30 PVC Double Layered (Red/Black) Lay Flat Hose

This made in KOREA braided layflat hose is ideal for standard duty applications in industrial, irrigation and mining industries.

Applications: High pressure irrigation & dewatering light gravel or mud discharge, construction, industrial, agriculture & marine service industries

  • Excellent performance on flat ground
  • 6 - 10.5 kgf/cm2 (bar) working pressure
  • Constructed with high grade strength polyester yarn reinforcement
  • Lightweight and compact for economical storage

Construction: Braided Polyester Yarns plus PVC cover and inner lining extruded for maximum bonding

Working Temperature: -21ºC to 76 ºC



Technical Specifications
Size Inner Diameter Thickness Std Length Working Pressure (at 20c)
mm inch mm mm m kg/ ㎠ (bar)
40 1 1/2" 40 2.1 100 10
50 2" 52 2.3 100 7
65 2 1/2" 65 2.5 100 7
75 3" 77 2.5 100 6
100 4" 103 2.6 100 6
125 5" 128 2.6 100 5
150 6" 153 2.7 100 5
200 8" 207 2.8 100 5
250 10" 254 3 50 2
300 12" 305 3.5 50 2
